WAGNER TUNING Performance Intercooler Kit BMW M5/M8

now available!

Performance INTERCOOLER KIT for BMW M5/M8 F9X

BMW F90 M5 441KW/600PS (2017+)
BMW F90 M5 Competition 460KW/625PS (2018+)
BMW F90 M5 CS 467KW/635PS (2021+)
BMW F91/92/93 M8 441KW/600PS (2019+)

The 4.4 Liter V8 biturbo engine (S63 B44T4) of BMW M-models is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is realized by a watercooled intercooler which will be replaced by this WagnerTuning high-performance intercooler.

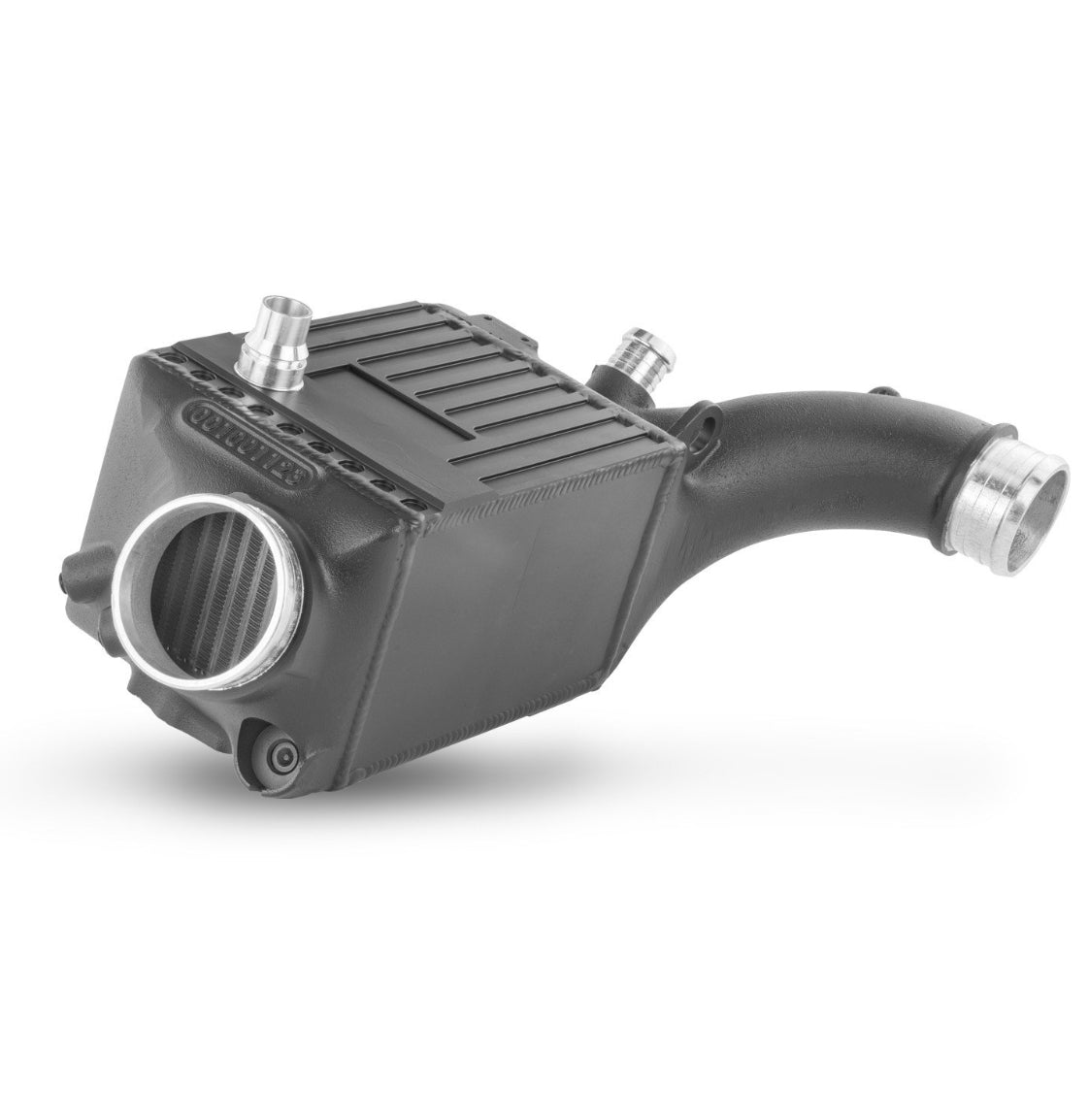

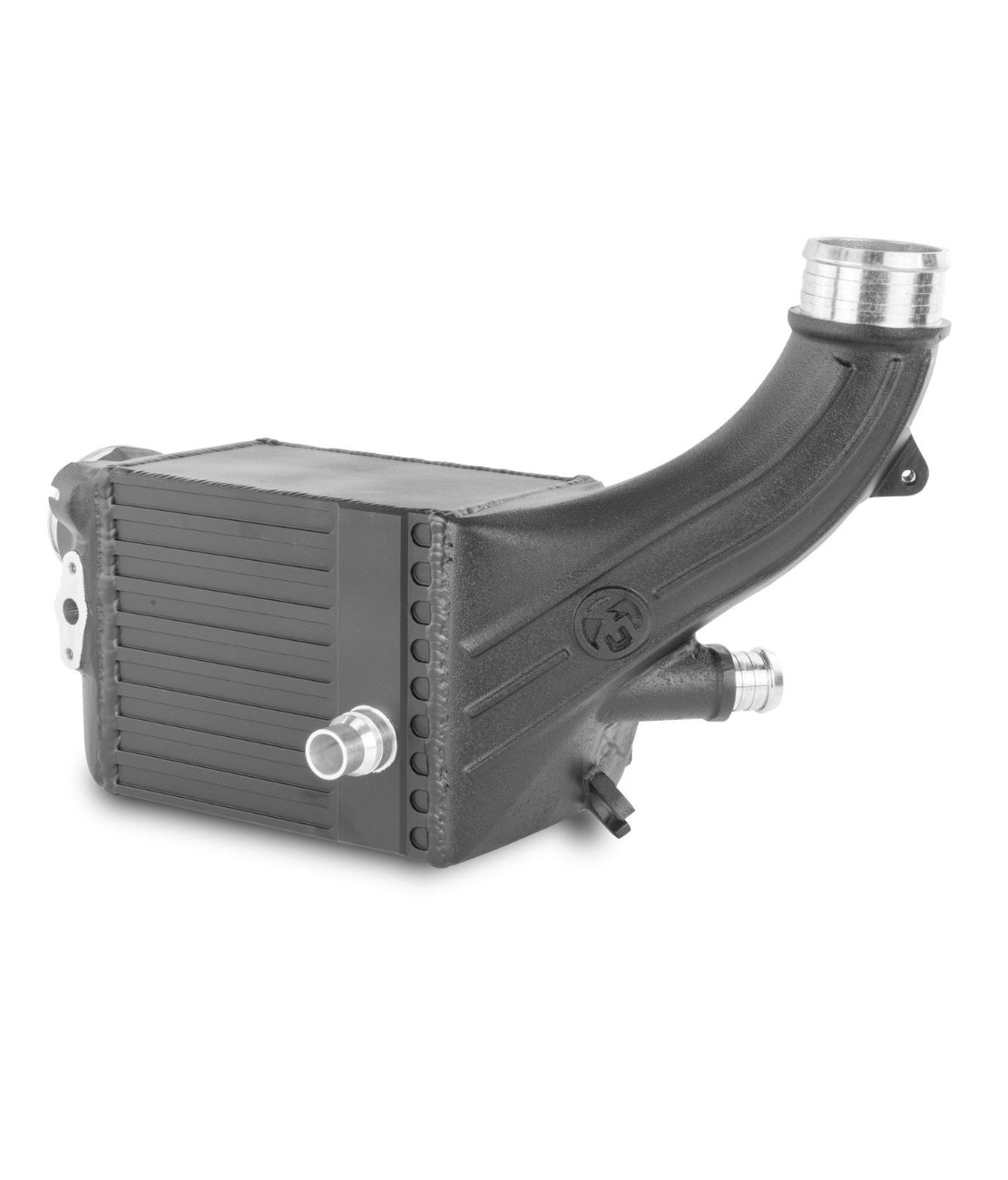

The WAGNERTUNING high-performance intercooler has got a new performance core with the external core dimensions 192 mm x 156 mm x 128 mm / 8,23Inch x 6,89Inch x 4,33Inch. This intercooler core was directly developed for the high requirements of the BMW M5/M8 engine and offers 75 % more external core volume compared to the stock intercooler. The calculated ratio between the inner and outer cooling surface generates a maximum heat transfer and at the same time the best possible internal air flow. The aluminum cast endtanks were designed in CAD and optimized in CFD simulations. The result is an excellent cooling property with a minimal back pressure. That`s why this kit is also perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!

All WAGNERTUNING radiators are equipped with a heat-conductive anti corrosion coating to ensure a lasting cooling effect. The plug & play installation of the system is simple and easy to perform (an installation instruction is included as well).

Advantages of this product:
- significantly better cooling performance
- more power and torque for your engine
- mechanical discharge of the turbocharger
- additional WMI-Ports (we recommend using Part No.SP30401 from Snow Performance)
- 100% pressure resistance
- 100% Plug and Play
- up to 4 years warranty

core dimensions stock intercooler:
152 mm x 143 mm x 100 mm
V = 2,19 Liter

core dimensions WT intercooler:
192 mm x 156 mm x 128 mm
V = 3,83 Liter (+75%)

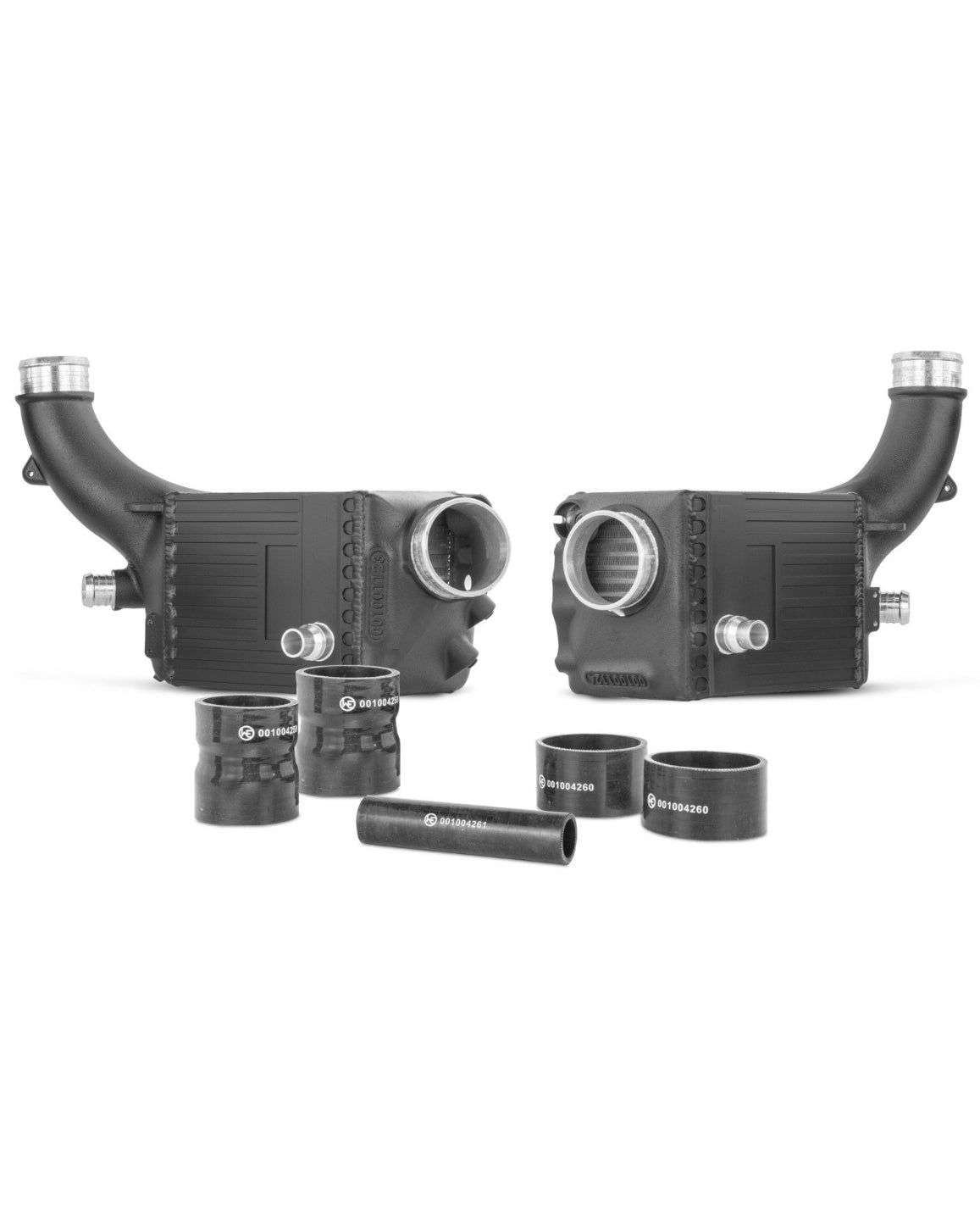

Kit comes with:
2 Intercooler
5 Silicone hoses
1 Mounting material
