PRL Motorsports 2017-2021 Honda Civic Type-R Front Pipe Gasket and Hardware Kit

Replacement hardware kit for our 2017-2021 Honda Civic Type-R Front Pipe. May fit other manufacturers' 3 inch downpipes.

KLINGER Graphite Laminate SLS consists of expanded layers of graphite, which are stuck to a 0.05mm thin smooth sheet metal foil made of 1.4401.

The adhesive layer is applied via a precisely controlled process, which makes it possible to keep the amount of adhesive below 1 Percent of the amount of graphite in order to ensure uniform distribution of the adhesive.

Especially suitable for weak flanges at high temperatures up to 450 Degree C.
The gasket material consists of expanded layers of graphite, which are stuck to a 0.05mm thin smooth sheet metal foil made of 1.4401.

The adhesive layer is applied via a precisely controlled process, which makes it possible to keep the amount of adhesive below 1 Percent of the amount of graphite in order to ensure uniform distribution of the adhesive.

• Excellent chemical resistance
• Excellent high temperature resistance
• Provides excellent adaptability to any sealing surface
• Seals irregular flanges
• Conforms easily
• Stable physical properties over the whole temperature range

Each gasket is stamped from KLINGER Graphite Laminate SLS, which offers excellent sealing properties for flanges throughout a wide variety of temperatures.

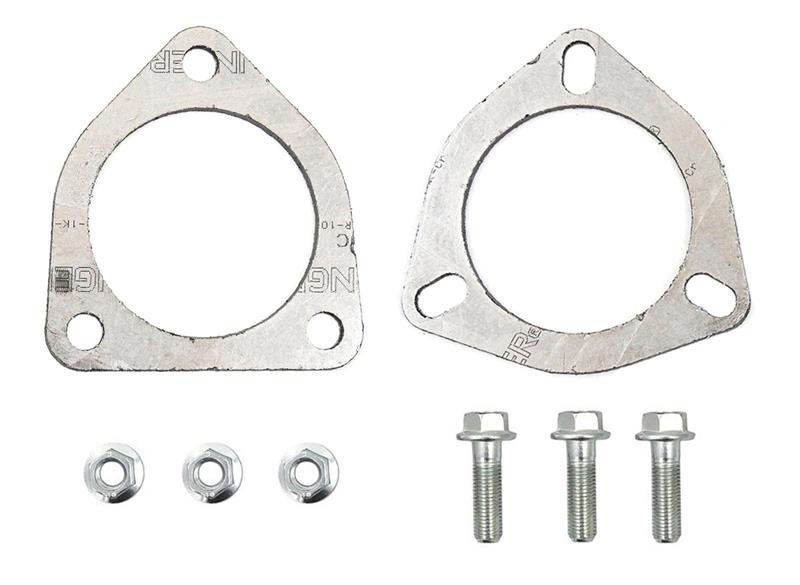

Kit Includes:

• 1 Downpipe Gasket
• 1 Front Pipe Gasket
• 3 M10 x 1.25mm x 35mm Flange Bolt
• 3 M10 x 1.25mm Flange Nut
