Fits all 2016-2021 Honda Civic 1.5T Fits all variant models including Si, CVT 6MT, RHD, International Models, Etc.
- No ECU Calibration Required
- Only Fits Prl Motorsports Intercooler Upgrade . V1 Cast End Tank Intercooler Does Not Require Adapte
Technical Notes:
Our upgraded charge pipe kit utilizes smooth flowing, larger inner diameter hot 1.50 inch factory compared to 2.00 inch and cold-side 1.5 Inch factory compared to 2.5 Inch for increased airflow and factory diameter hot-side outlet to aid in turbocharger spool.
4-ply silicone couplers are used throughout our design for a couple of reasons:
-
Heat-soak reduction: Silicone hose offers extremely low thermal heat transfer properties, especially in comparison to steel or aluminum.
-
Strength and rigidity: The rubber hoses used from the factory are known to experience expansion, which worsens as boost is increased. In time, the rubber construct weakens, causing increased likeliness of a boost leak. Our high-temp, 4-ply silicone with handle the high temperatures of the turbocharger much better than the factory rubber hoses.
-
Smooth airflow: Custom molded silicone allows us to offer much higher flowing bends than we could with metal tubing.
-
Optimal fitment: We have found that the factory rubbers hoses don't offer the most desirable fitment, especially when paired with an aftermarket radiator. Our silicone hoses offer even better fitment than factory.
Kits will come with all hardware needed for a seamless install.
Performance Gains:
- Increased efficiency and consistency in power delivery
- Increased flow over stock charge pipe application

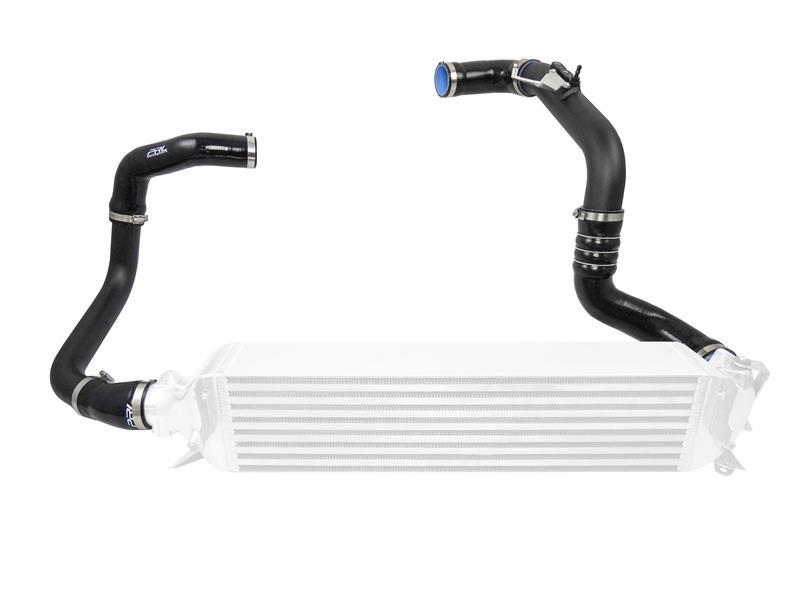

Kit Includes:
- 1 Hot Side Charge Pipe
- 1 Cold Side Charge Pipe w/ Auxiliary Service Port and Machined Billet Aluminum Flange
- 1 -4AN O-Ring to 1/4 Inch Hose Barb Pre-Installed in Cold Side Charge Pipe to retain factory vacuum connection
- 1 1/8 inch NPT Pipe Plug Pre-Installed in Auxiliary Service Port Bung
- 1 Mounting Bracket for Cold Side Charge Pipe
- 4 4-Ply Silicone Coupler
- 8 304 Stainless Steel Worm Clamp
- 2 Charge Pipe Adapters
