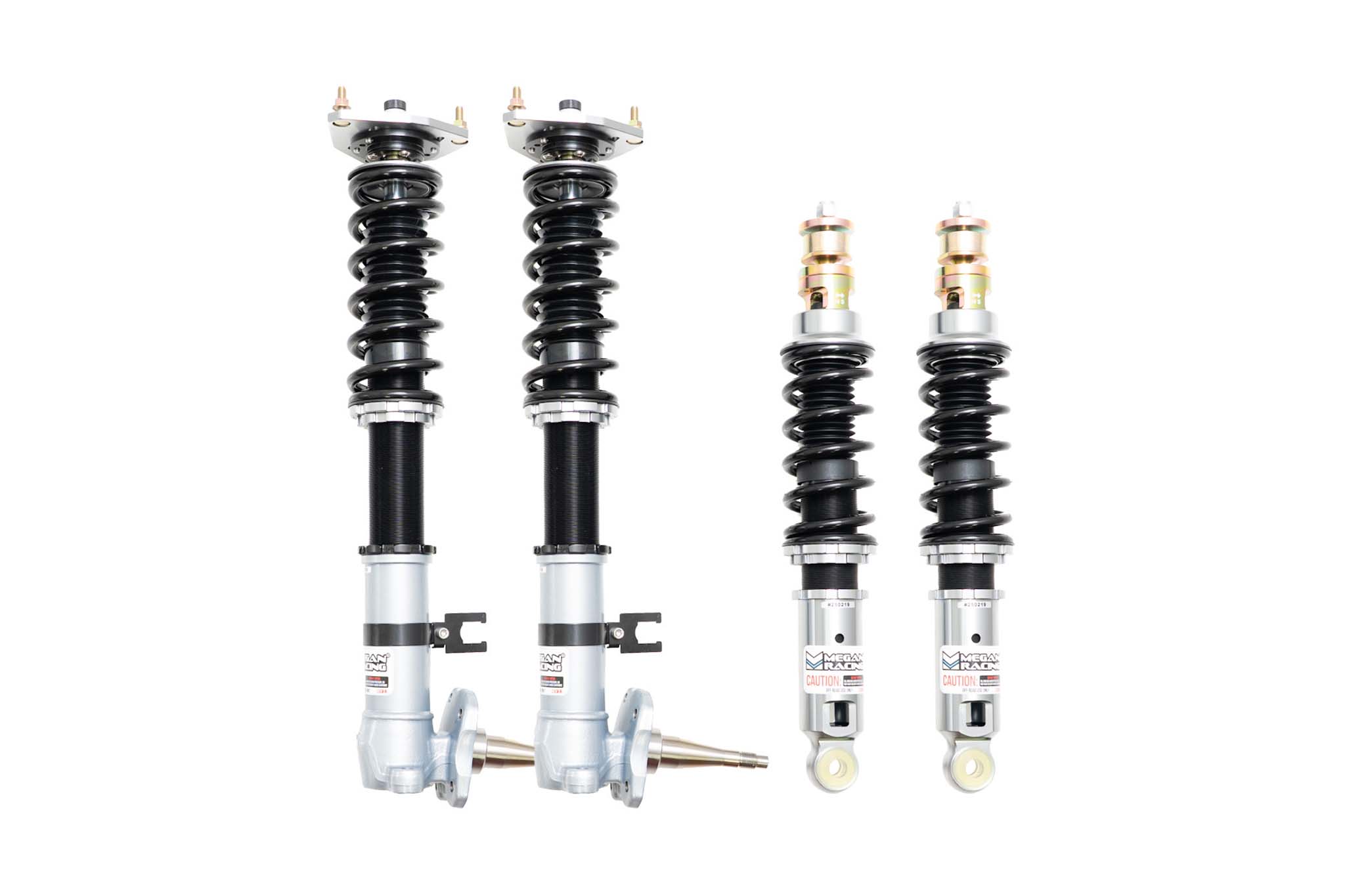

Our Track Series Coilover System for the AE86 has been specifically tailored for aggressive track use with noise insulation and street comfort becoming less of a priority. Aggressive spring rates and valving provide superior dynamic control specifically with the use of higher grip track day tires. The inclusion of front and rear pillowball top mounts eliminate any slop from the suspension allowing the springs and dampers to completely absorb and control dynamic road surfaces while driving. The rear is also converted to be a €œcoil-over€� assembly eliminating the separated spring further increasing tuning options for different set-ups and compatibility with adjustable rear toe arms.
Featuring 32 levels of damper force adjustment, pillowball top mounts and full length shock adjustability. Ride height can be adjusted separately from spring preload allowing for precise tuning while compression and rebound damping are simultaneously adjusted via knobs accessed on the top of each damper. The wide range of allowable ride height adjustment allows for a conservative drop to more aggressive ride heights for an aggressive stance, or to fine tune your suspension for the circuit to gain full potential of your vehicle€™s handling capabilities.
The quality and durability of the Megan Racing Damper kits are unmatched protected with a 1-year warranty against manufacturer defects. <p.
NOTE: Due to the use of front and rear pillowball top mounts. Excessive suspension and road force noise may be transmitted into the driver cabin. It is in the nature of this series of this coilover system.
NOTE: Reinforcement of the upper shock mount and mild clearancing around the body of the rear coil spring required.
Applications:
-- Toyota Corolla RWD AE86 1983-1987
Specifications and Features:
-Spring Rate Front: 6kgf/mm
-Spring Rate Rear: 5kgf/mm
-Rear Coil-Over Conversion
-Internal Construction: Monotube
-Damping Force Adjustability: 32-way Compression & Rebound Simultaneous
-Full Length Adjustability
-Front & Rear Pillowball Top Mounts
-1-Year Warranty Against Manufacturer Defects
