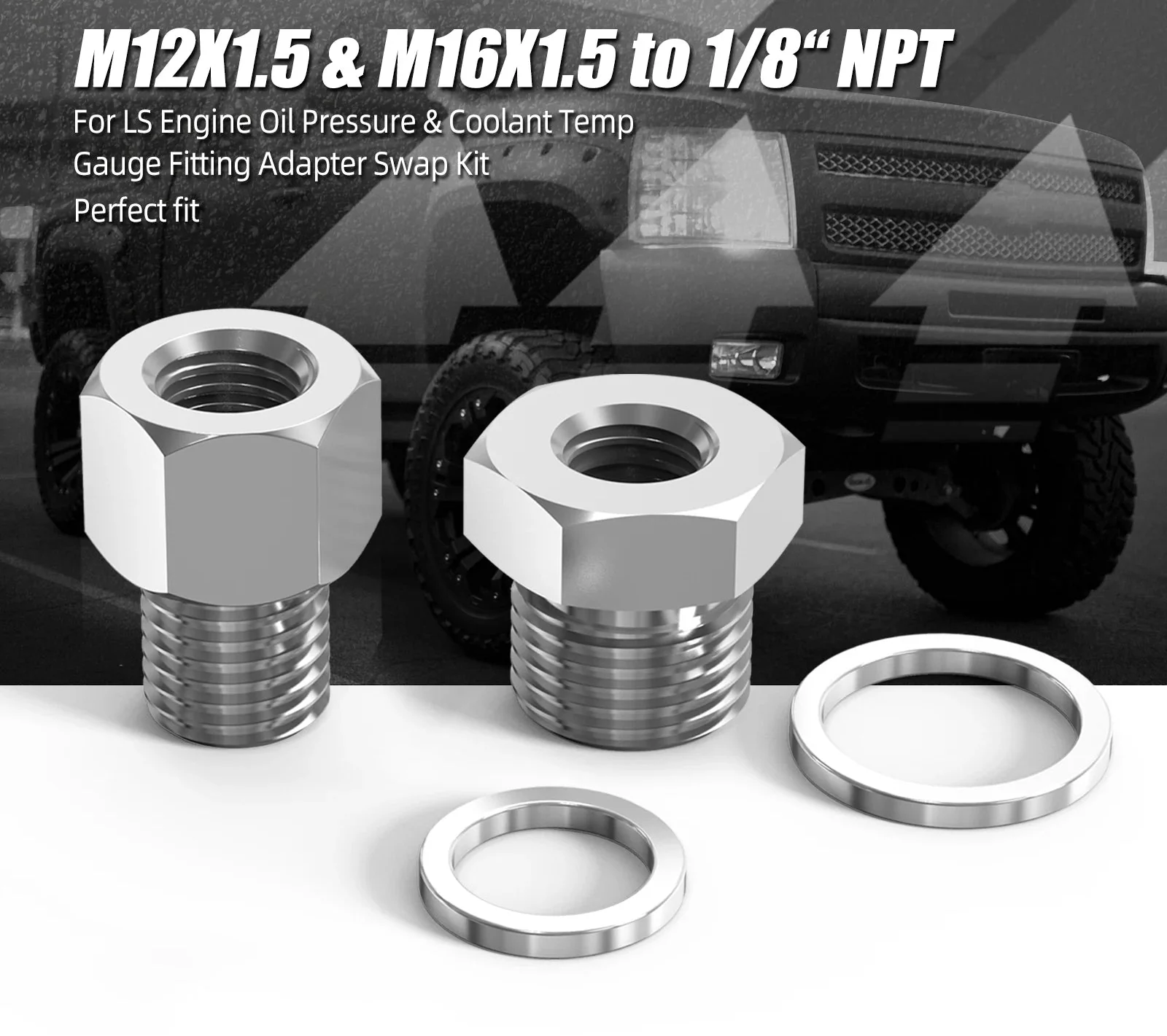

LS Engine Stainless Steel Oil Pressure & Coolant Temp Gauge Adapter Kit for LS1 / LS2 / LS3 / LS7 Swap (M12 x 1.5 & M16 x 1.5 to 1/8" NPT)

Stainless steel oil pressure and coolant temperature gauge adapter kit for installing aftermarket gauges on an LS engine. Includes the necessary 16mm and 12mm adapters to replace the factory sensors – the oil pressure adapter replaces the factory sender behind the intake, and the coolant temp adapter replaces the plug in the passenger side cylinder head and is made for newer low-profile senders. Female threads are 1/8" NPT, and the 16mm and 12mm male threads are the correct metric threads for an LSX engine.

Features:

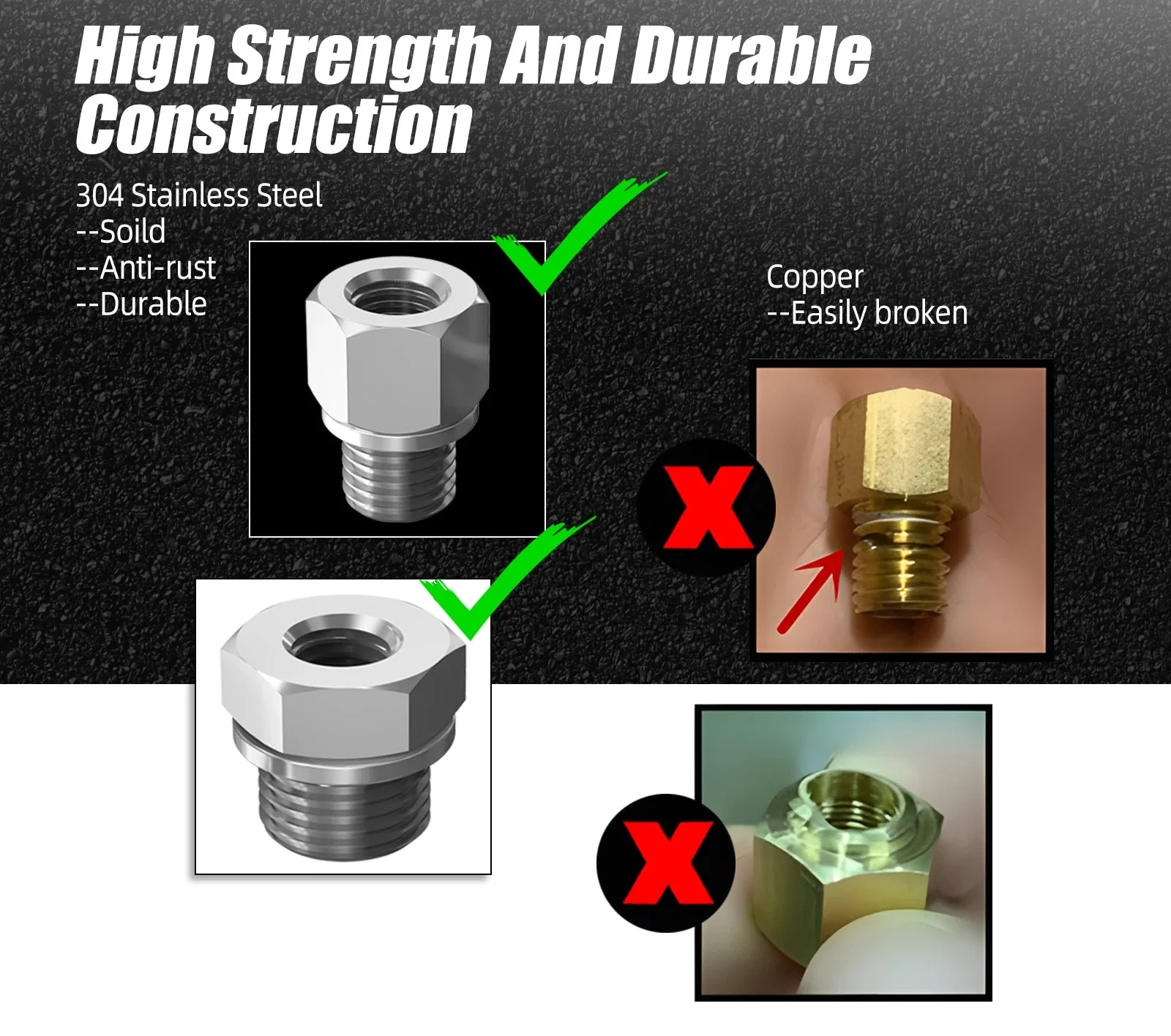

• High strength and durable construction
• Fittings to install aftermarket gauges on an LS engine
• The necessary 16mm and 12mm adapters to replace the factory sensors
• The oil pressure adapter replaces the factory sender behind the intake
• The coolant temp adapter replaces the plug in the passenger side cylinder head and is made for newer low-profile senders
• Female threads are 1/8" NPT
• The 16mm and 12mm male threads are the correct metric threads for an LSX engine

Specifications:

• Condition: 100% Brand New
• Material: Stainless Steel
• Size: M12 x 1.5 & M16 x 1.5
• Color: Silver
• Female Threads: 1/8" NPT
• Applicable Models: Fits LS Series Engines

Fitment:

• LS Engine Swap Applications: LS1, LS2, LS3, LS7
• Compatible with all LS series engines using factory sensor locations

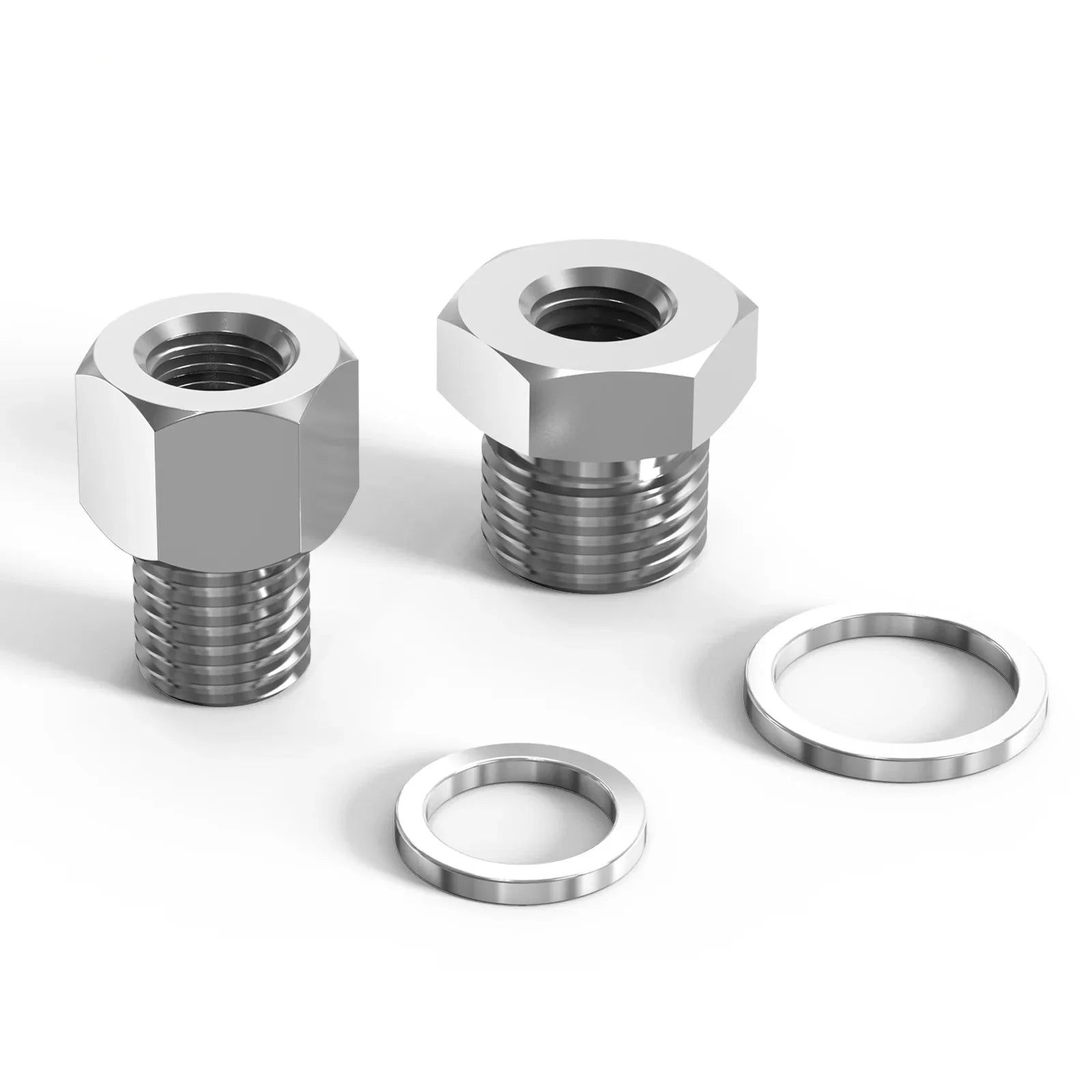

Contents:

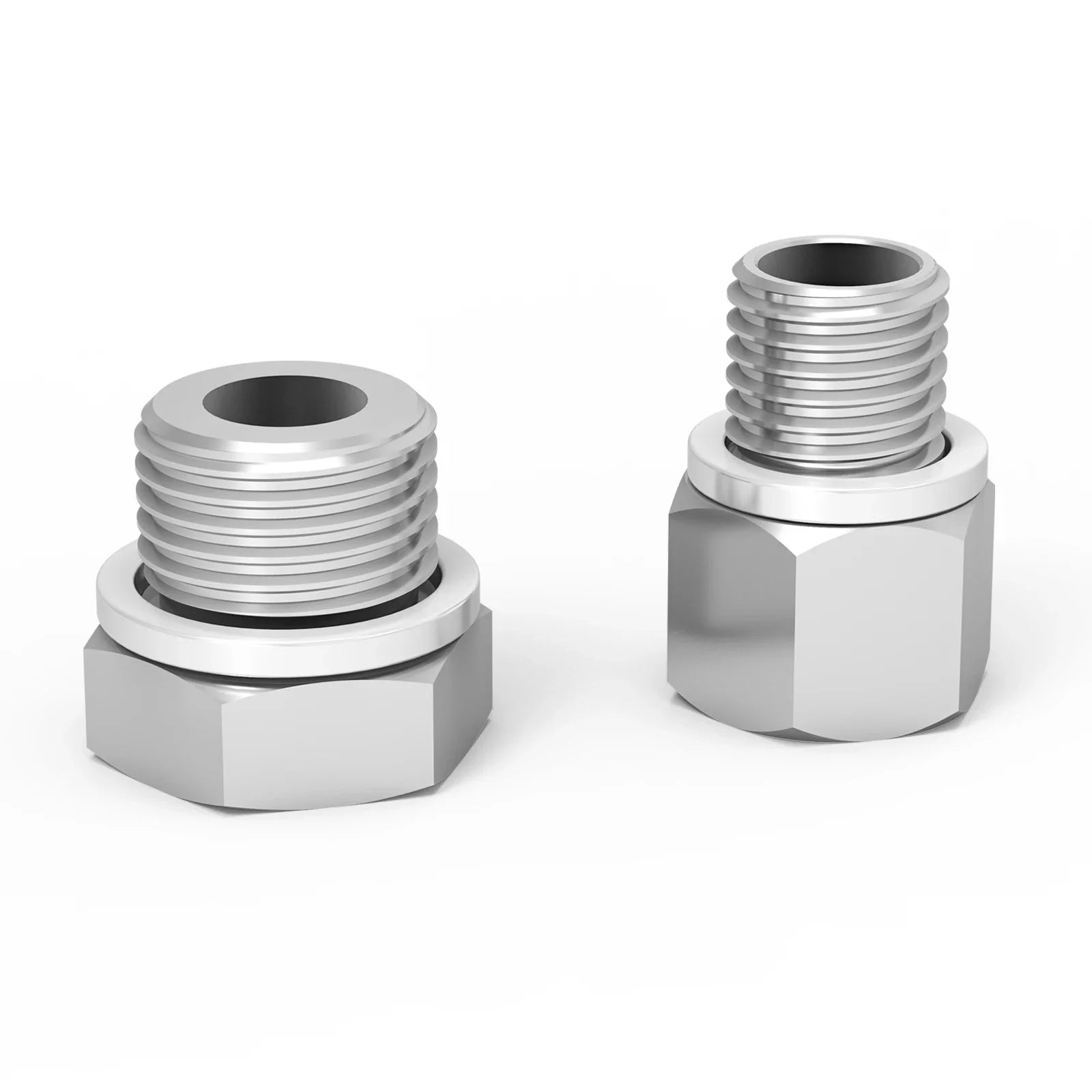

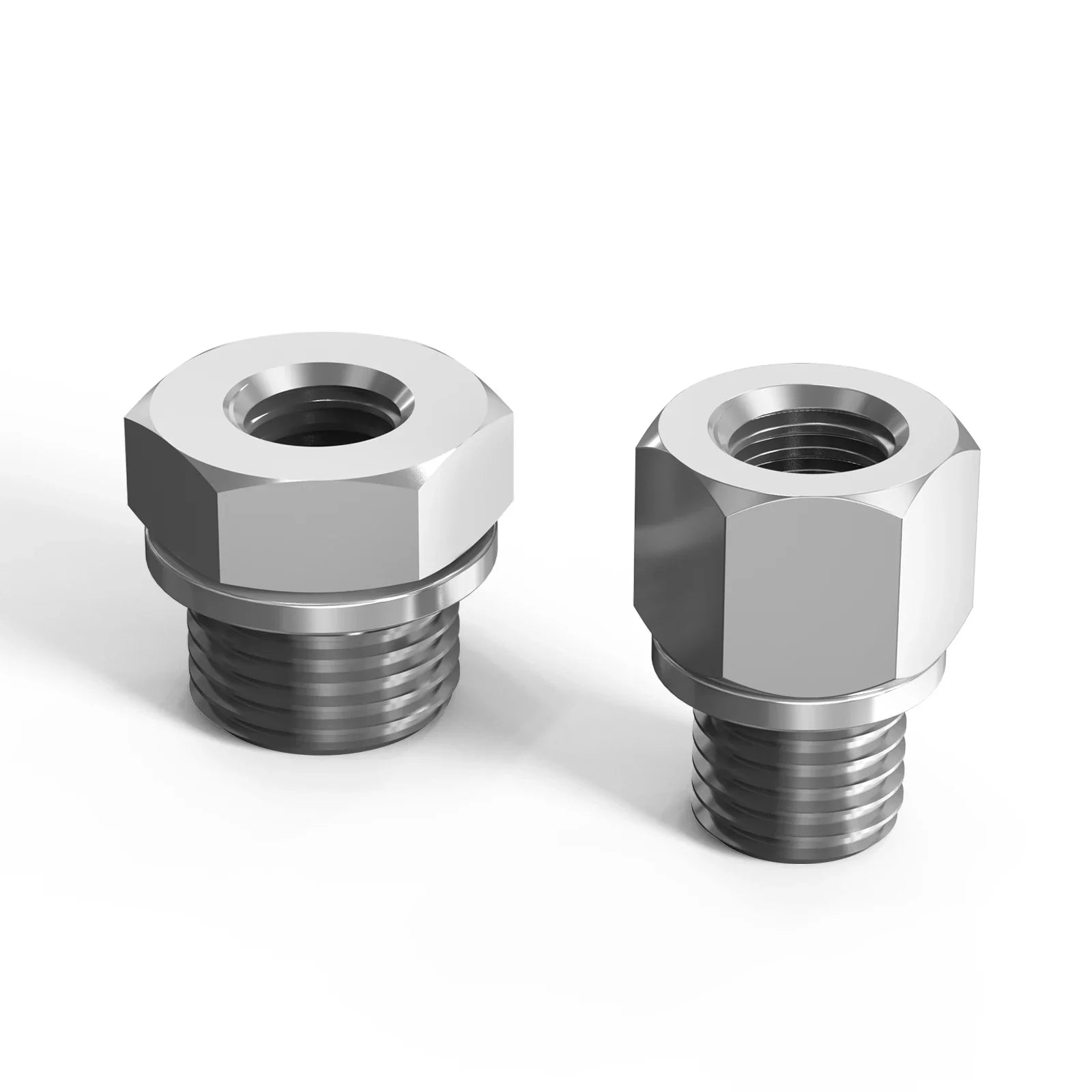

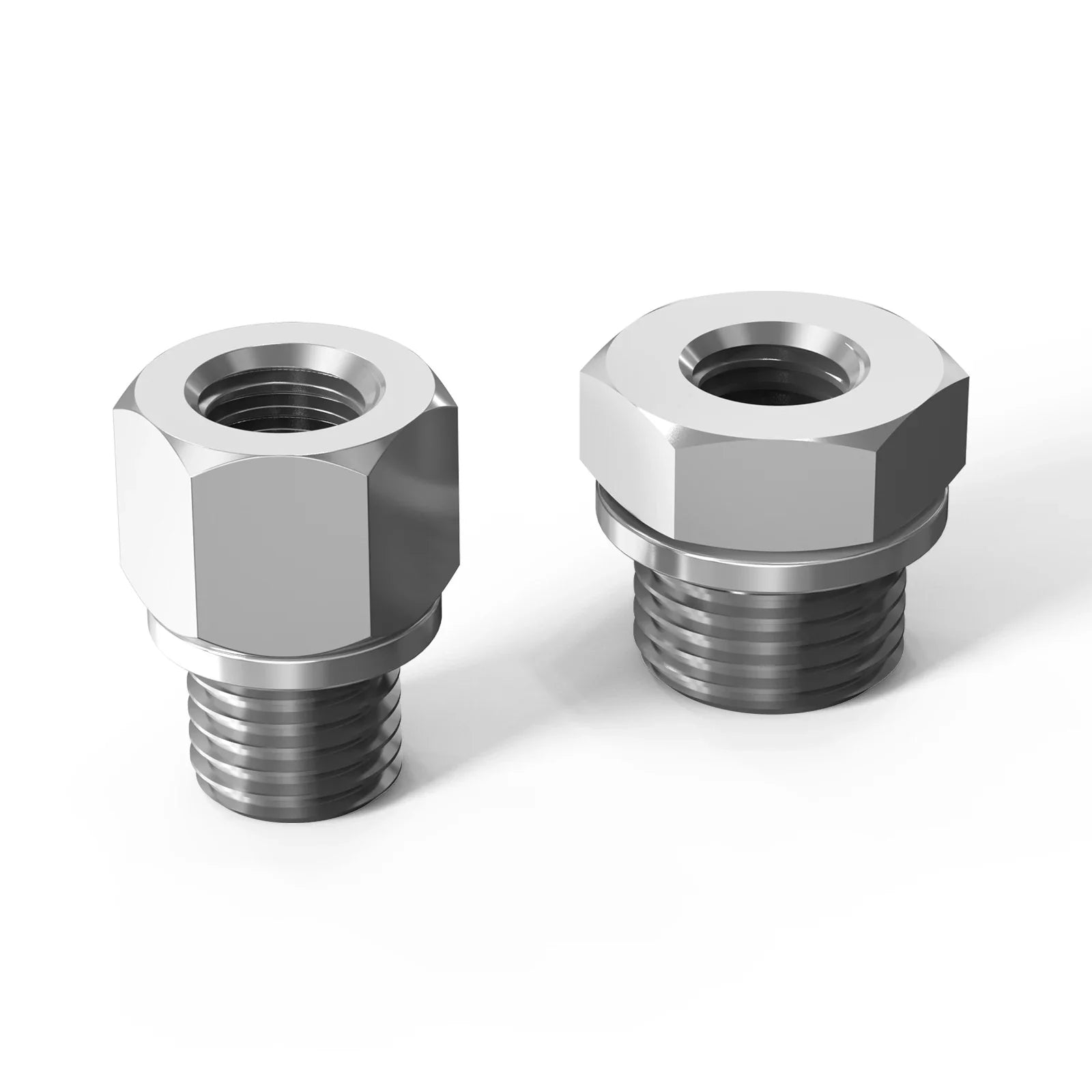

• 1x Oil Pressure Sensor Adapter (M16 x 1.5 to 1/8" NPT)
• 1x Coolant Temp Adapter (M12 x 1.5 to 1/8" NPT)
• 2x Gaskets

Important Notes:

• No installation tool and no instructions are included – professional installation is recommended

Warranty:

• 12-month standard warranty from date of purchase
• Contact our support team for assistance with any issues
