Icon 24-26 Toyota Tacoma 1.25-3in Stage 9 Suspension System w/ Billet UCA

ICON
ICOK53299
Control Arms
$7,385.74

customers are viewing this product
Icon 24-26 Toyota Tacoma 1.25-3in Stage 9 Suspension System w/ Billet UCA

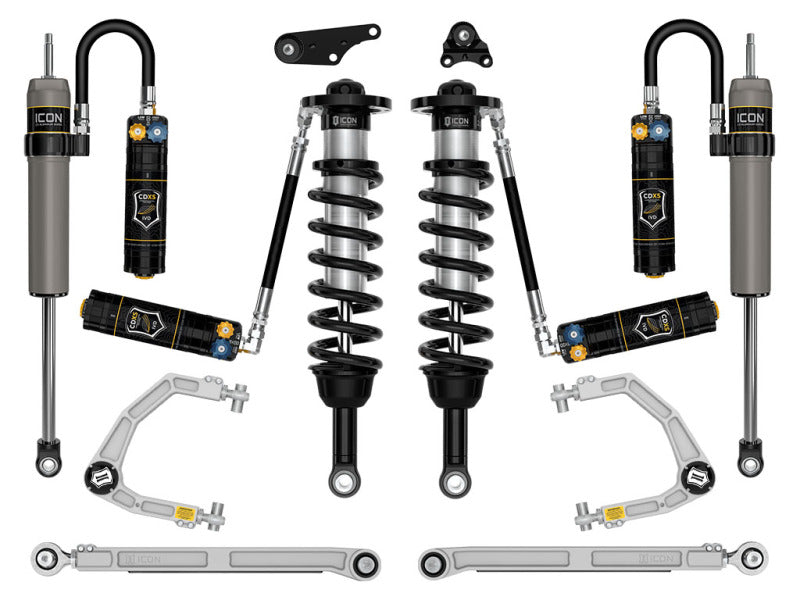

ICON Vehicle Dynamics 2024-2026 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 9 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDXS equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Stage 9 also features ICON's exclusive Compression Damping Dual Speed (CDXS) valves for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.

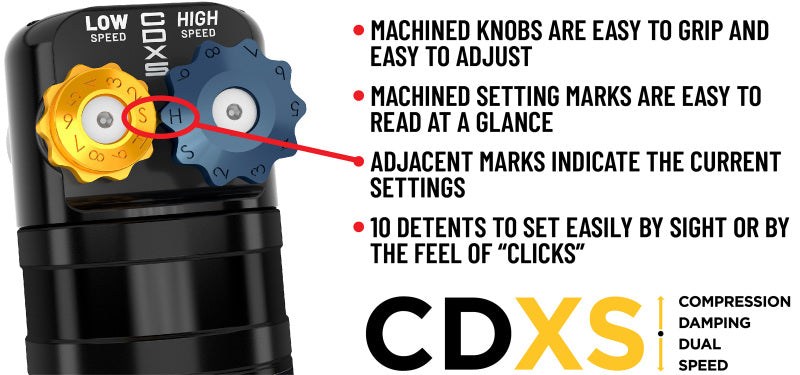

  • All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

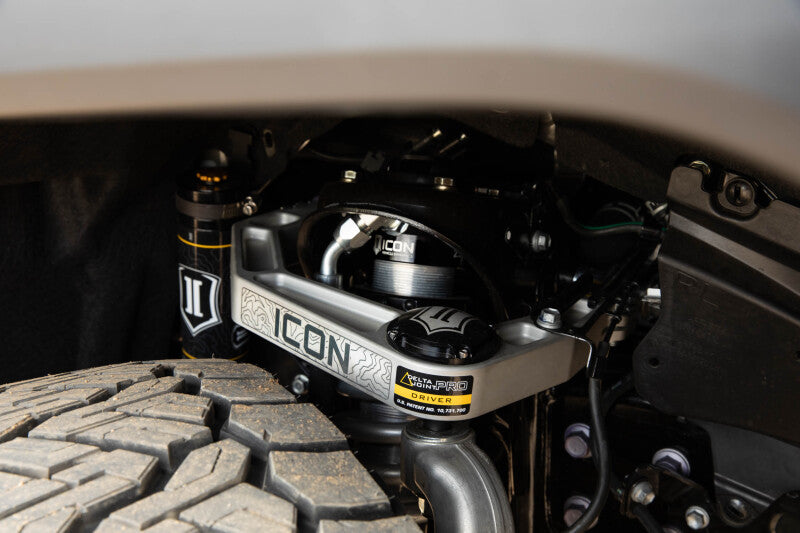

  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation

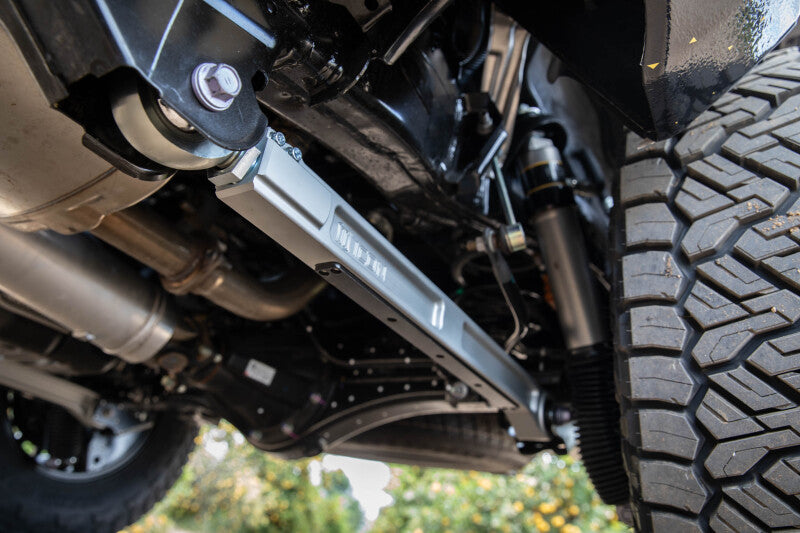

  • Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • FK Rod End bearings for extended longevity and minimal deflection
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • Increased wheel travel and improved ride quality over stock
  • 6061 aircraft grade aluminum CNC machined components
  • ICON engineered coil springs

This Part Fits:

Year Make Model Submodel
2024 Toyota Tacoma Limited
2024-2026 Toyota Tacoma SR5
2024-2026 Toyota Tacoma TRD Off-Road
2024-2026 Toyota Tacoma TRD Sport
