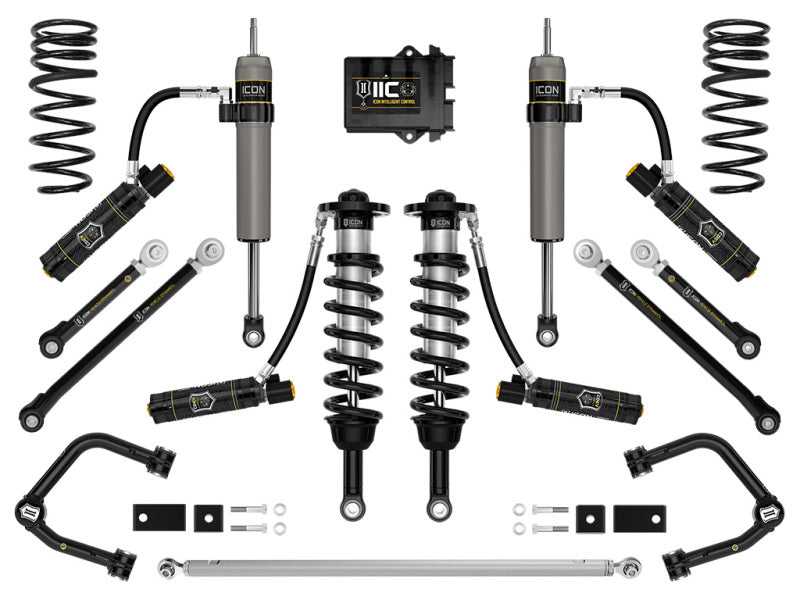

This Stage 12 system features the 2023-2026 Toyota Sequoia VS 2.5 Series remote reservoir front coilovers equipped with CDEV. These adjustable coilovers allow up to 3-4.5” of lift height adjustability over stock when using the ICON billet aluminum front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

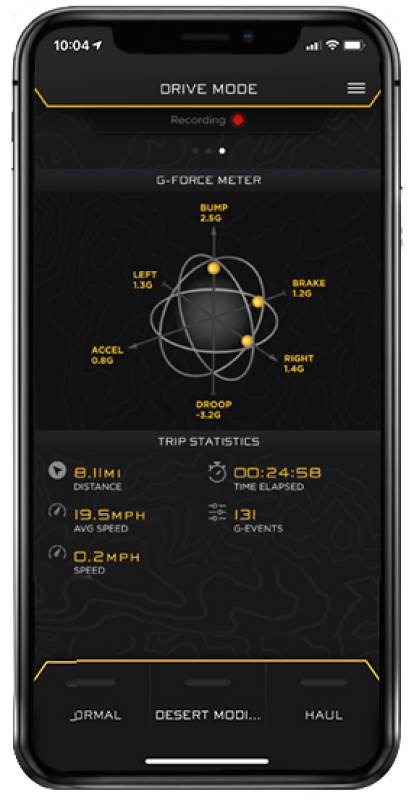

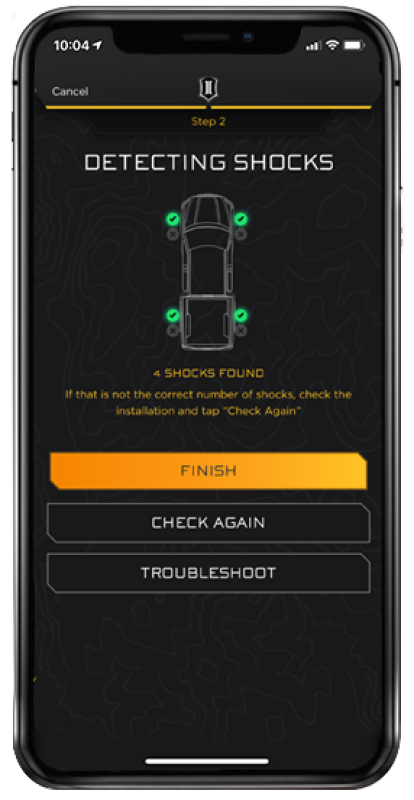

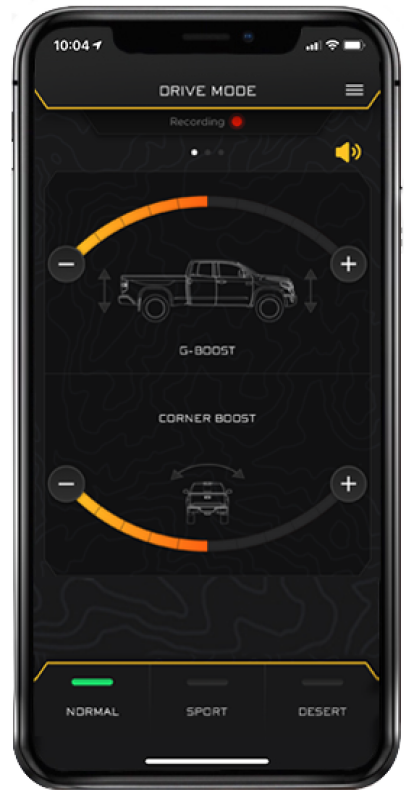

- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Dual rate rear coil springs improve performance and ride quality while providing 2" or 4" of rear lift, depending on the vehicle's stock suspension package

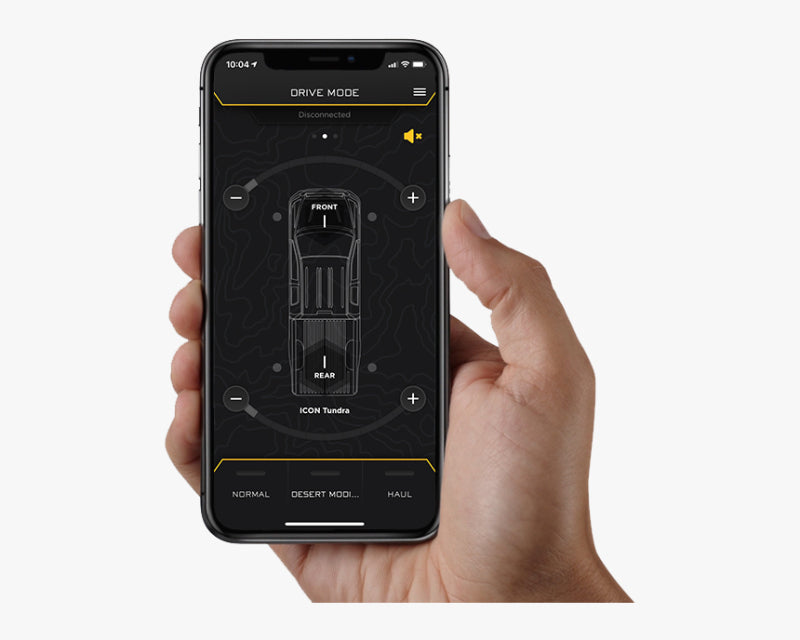

- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- Adjustable front ride heights from 3-4.5” of front lift over stock
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- All ICON shock absorbers are fully rebuildable and re-tunable

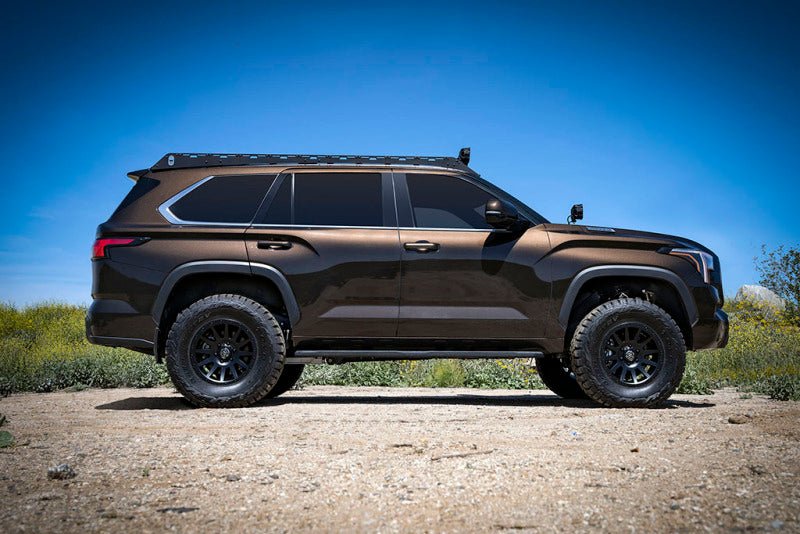

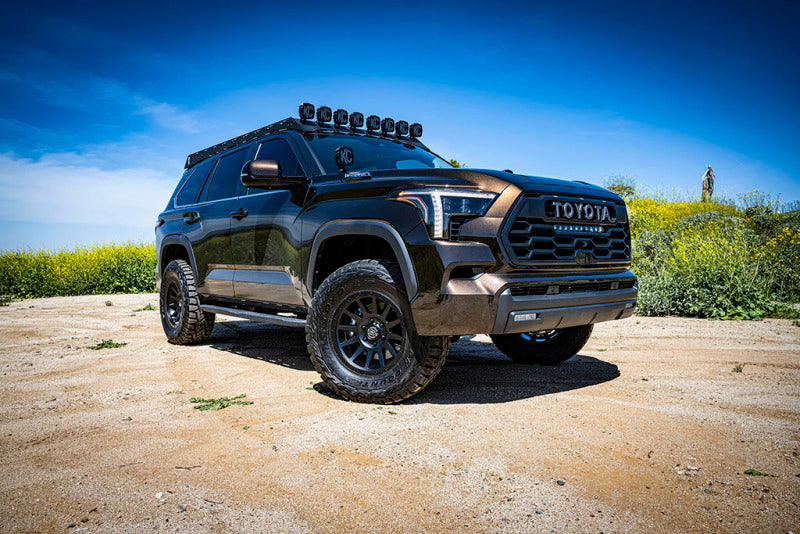

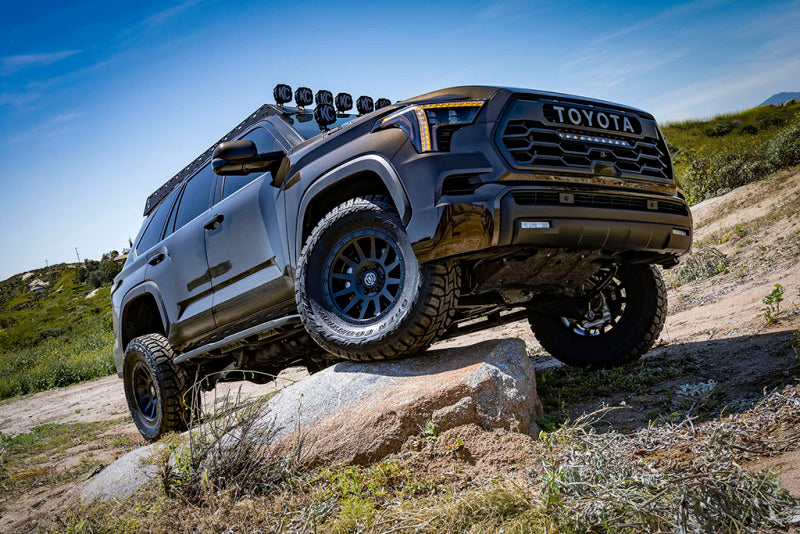

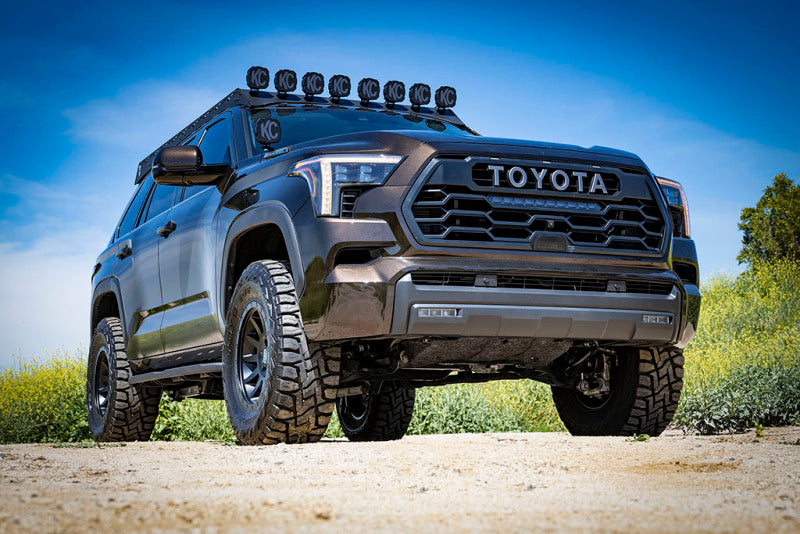

- Vehicle specific design for 2023-2026 Toyota Sequoia
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2025-2026 | Toyota | Sequoia | 1794 Edition |
| 2023-2026 | Toyota | Sequoia | Capstone |
| 2023-2026 | Toyota | Sequoia | Limited |
| 2023-2026 | Toyota | Sequoia | Platinum |
| 2023-2026 | Toyota | Sequoia | SR5 |
| 2023-2026 | Toyota | Sequoia | TRD Pro |
