ICON 23-24 Toyota Sequoia 3-4.25in Stage 4 3.0 Suspension System - Billet

ICON
ICOK53254S
Coilovers
$12,395.94

customers are viewing this product
ICON 23-24 Toyota Sequoia 3-4.25in Stage 4 3.0 Suspension System - Billet

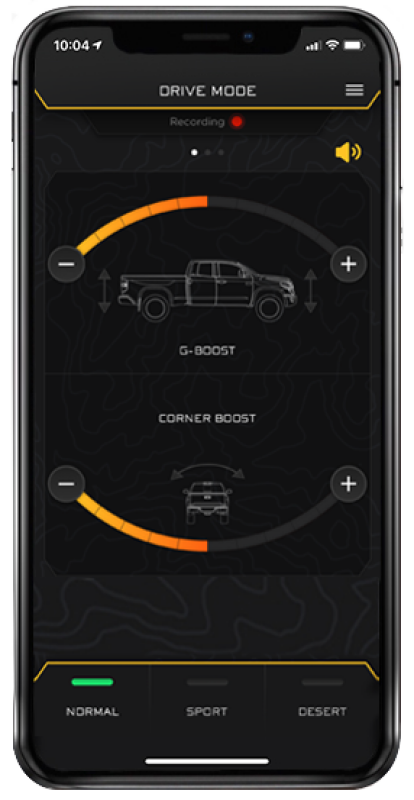

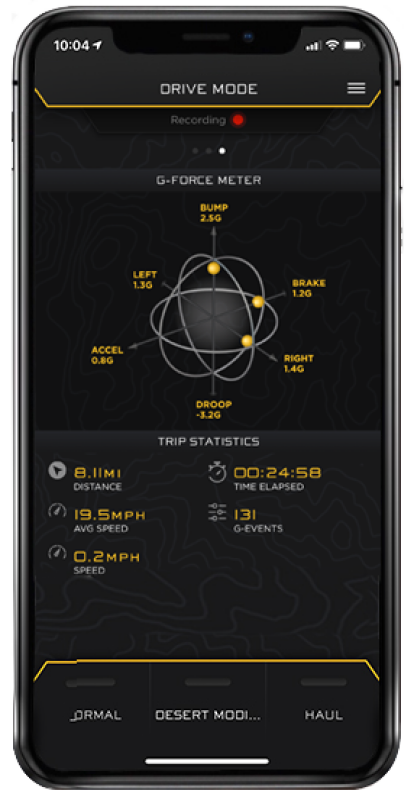

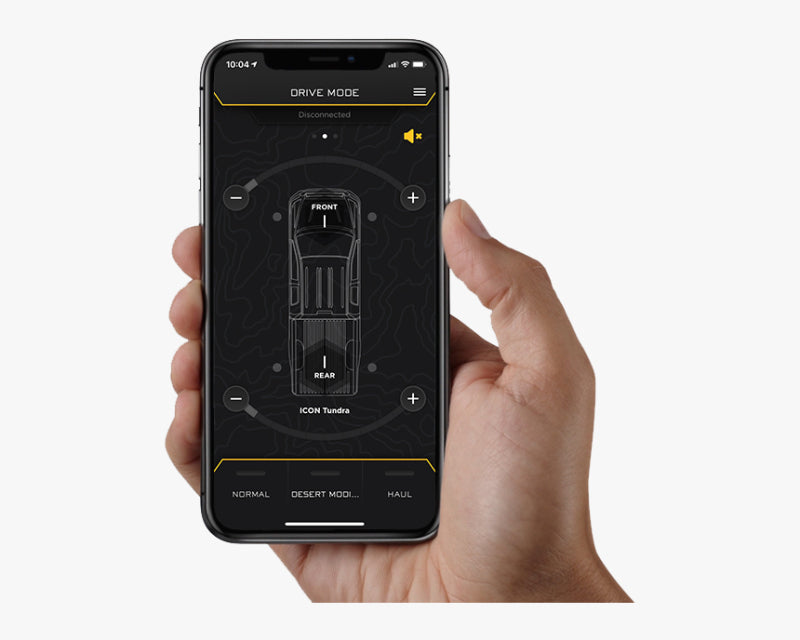

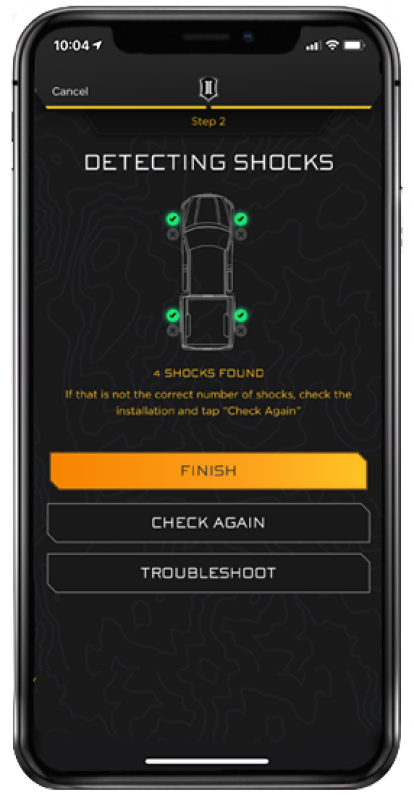

This Stage 4 system features the 2023-2026 Toyota Sequoia VS 3.0 Series remote reservoir front coilovers equipped with CDE Valves. These adjustable coilovers allow up to 3-4.25” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions.

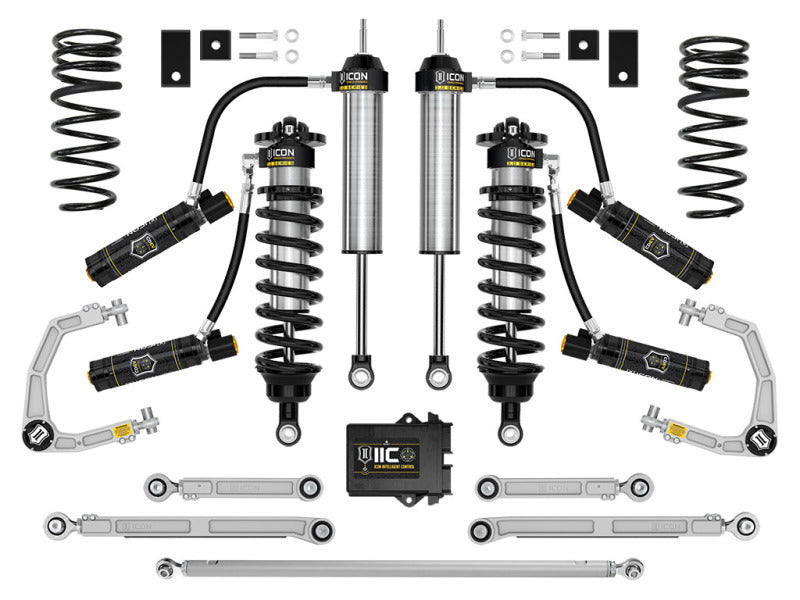

  • ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
  • Dual rate rear coil springs improve performance and ride quality while providing 2" or 4" of rear lift, depending on the vehicle's stock suspension package
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • 3.0 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
  • On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • 3.0 Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
  • Adjustable front ride heights from 3-4.25” of front lift over stock
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for full wheel travel without overstressing OE components
  • All ICON shock absorbers are fully rebuildable and re-tunable
  • Vehicle specific design for 2023-2026 Toyota Sequoia

This Part Fits:

Year Make Model Submodel
2025-2026 Toyota Sequoia 1794 Edition
2023-2026 Toyota Sequoia Capstone
2023-2026 Toyota Sequoia Limited
2023-2026 Toyota Sequoia Platinum
2023-2026 Toyota Sequoia SR5
2023-2026 Toyota Sequoia TRD Pro
