ICON 10-24 4RUNNER 0-3.5in Stage 9 Suspension System - Billet UCA

ICON
ICOK53069
Coilovers
$9,237.72

customers are viewing this product
ICON 10-24 4RUNNER 0-3.5in Stage 9 Suspension System - Billet UCA

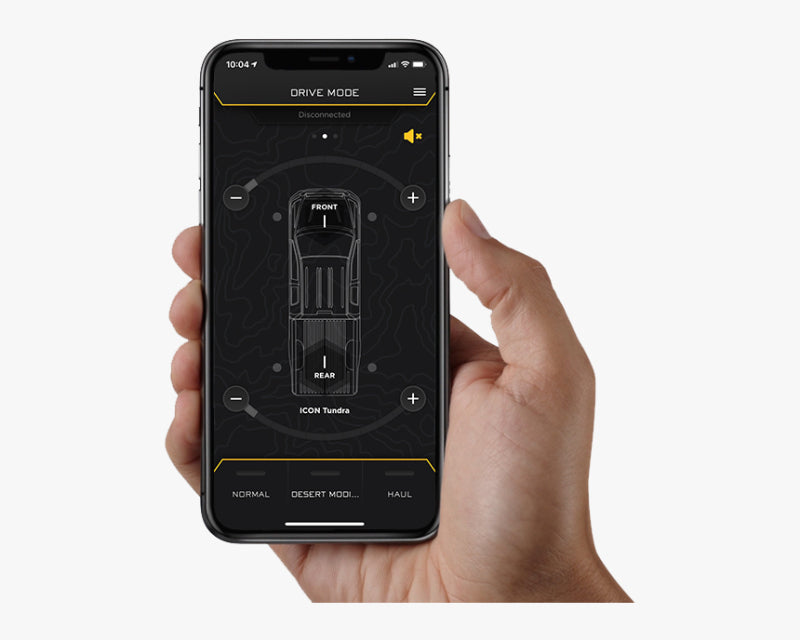

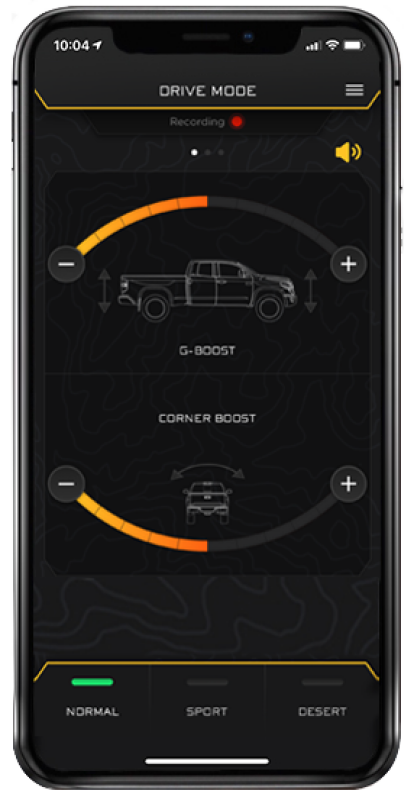

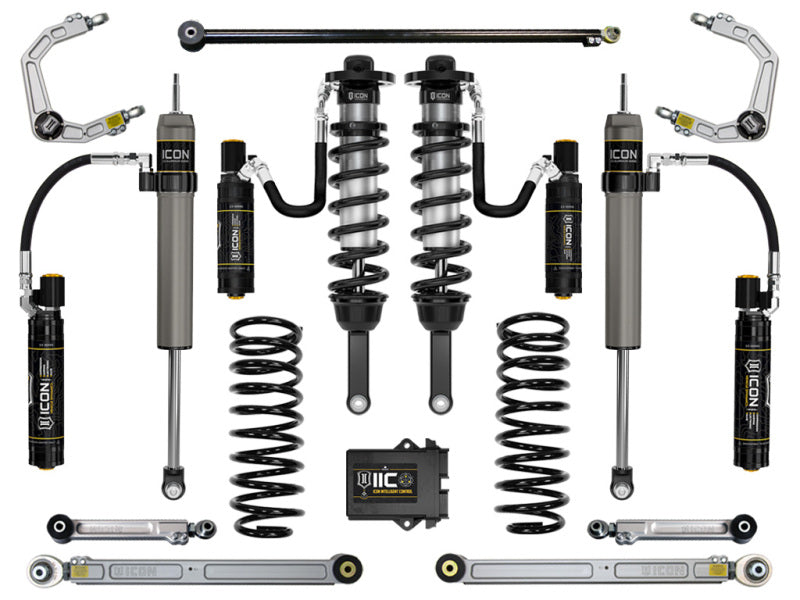

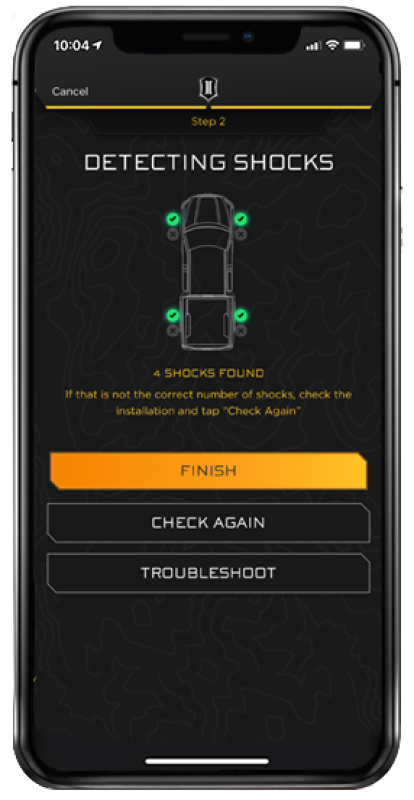

ICON 2010-2024 Toyota 4Runner suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 9 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks featuring CDEV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These coilovers are also height adjustable for 0-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combos. Billet aluminum Delta Joint upper control arms not only add strength and durability but help retain factory alignment specs and offer on-vehicle caster/camber adjustment,. ICON billet aluminum adjustable rear upper and lower links are made from CNC machined 6061 aluminum and anodized for corrosion resistance. These link arm kits feature PTFE-lined FK rod ends and greaseable polyurethane bushings for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability. ICON rear coil springs deliver on-road comfort and superior off-road performance with 2” of rear lift height over stock for a level stance front to rear. An adjustable rear track bar is included to provide proper rear axle alignment, improve articulation, and ensure fitment on KDSS equipped 4Runners. The 2.5 Aluminum Series CDEV remote reservoir rear shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street with active, adjustable compression damping.

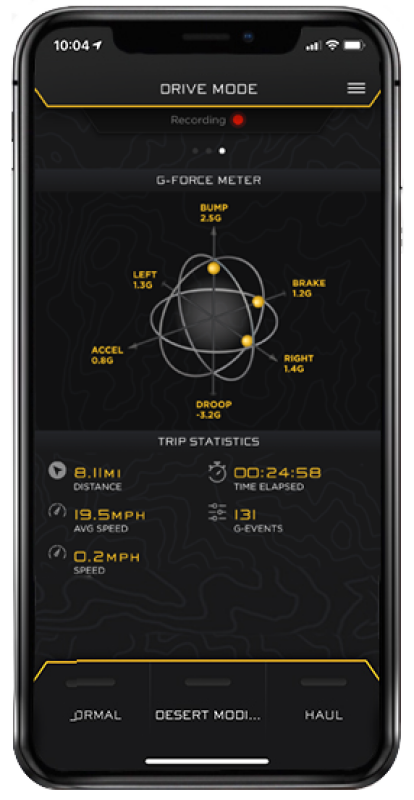

  • ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • Billet aluminum upper control arms for added strength, durability, adjustability, and improved alignment geometry
  • Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Billet Aluminum rear upper and lower links offer on vehicle pinion angle adjustment
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • Adjustable rear track bar proper rear axle placement under vehicle
  • FK Rod End bearings for extended longevity and minimal deflection
  • Bolt-on system means no cutting or welding necessary for install
  • Adjustable coilovers provide 0-3.5" of front lift height
  • 6061 aircraft grade aluminum CNC machined components
  • Increased wheel travel and ride quality over stock

This Part Fits:

Year Make Model Submodel
2023 Toyota 4Runner 40th Anniversary Edition
2010-2024 Toyota 4Runner Limited
2020-2021 Toyota 4Runner Nightshade
2010-2024 Toyota 4Runner SR5
2018-2024 Toyota 4Runner SR5 Premium
2010-2016,2021-2022 Toyota 4Runner Trail
2017-2024 Toyota 4Runner TRD Off-Road
2018-2024 Toyota 4Runner TRD Off-Road Premium
2015-2024 Toyota 4Runner TRD Pro
2022-2024 Toyota 4Runner TRD Sport
2020-2021 Toyota 4Runner Venture
