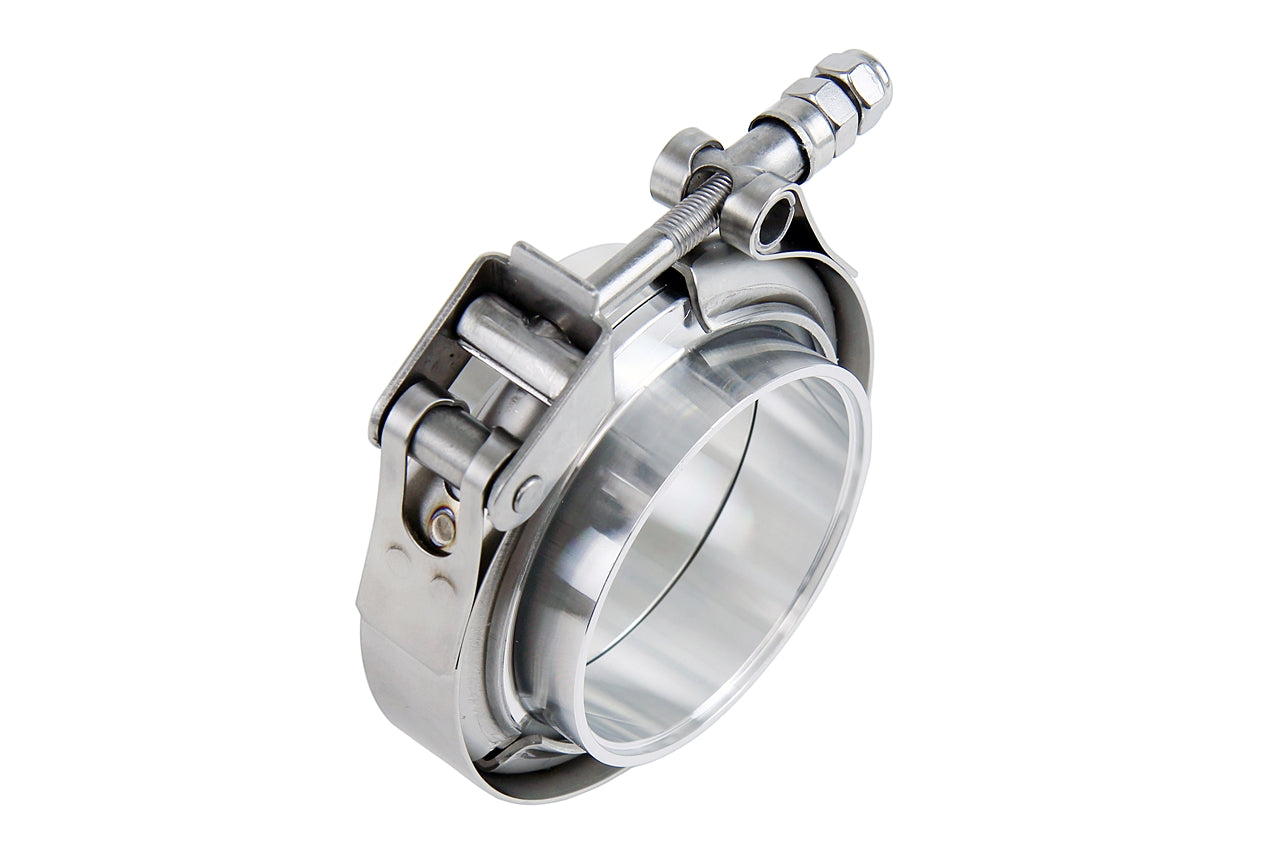

HPS Performance VCKIT-AL-250 HPS V-band clamp with interlocking aluminum flanges for 2.5" OD tubing.

HPS V-band clamp with interlocking aluminum flanges for 2.5" OD tubing.

HPS stainless steel V-band clamp with interlocking O-ring seal aluminum flanges for 2.5" OD tubing not suitable for exhaust applications.

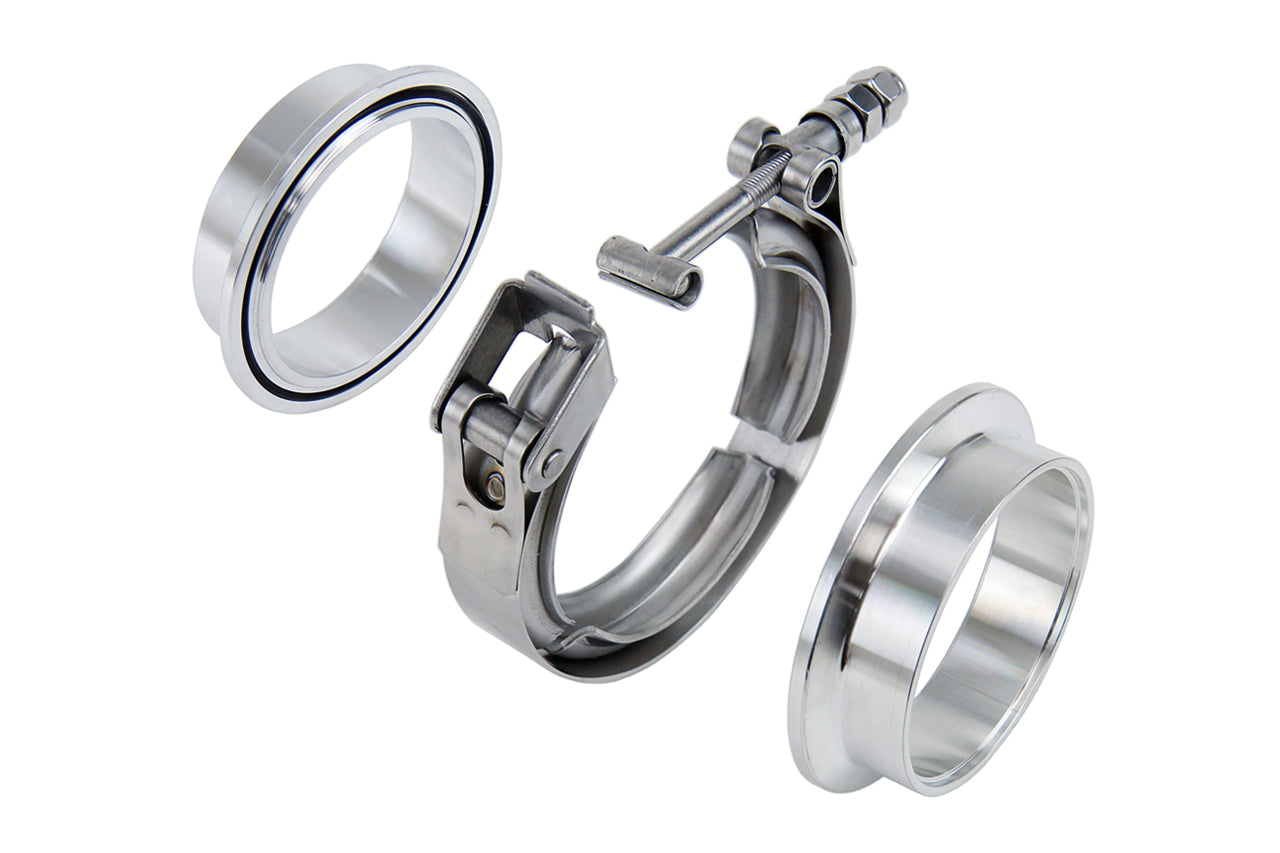

304 stainless steel quick release clamp for quick and convenient installation.; Aluminum flanges with interlocking male and female sides automatically align to eliminate improper installation.; Back side of flanges feature a recessed lip to align your 16 gauge aluminum tubing for welding.; Includes 2 nuts (1 non-locking nut for fit up and 1 nylon locking nut for final installation).; NBR O-ring included to create a leak-free pressurized seal for air and fluids.

HPS Stainless Steel V-Band Clamp Kits with aluminum flanges are a durable and versatile clamping system for your automotive and industrial applications. This clamp features a quick release T-bolt to allow quick and easy installation without having to fully disassemble the kit. It is made of 100% 304 stainless steel for excellent weather and corrosion resistance. The aluminum V-band flanges feature a male and female side to automatically align the flanges and eliminate improper installation. The back side of these V-band flanges feature a recessed lip to help center your aluminum tubing to the flange. This recess matches the ID of your 16 gauge tubing and allows for unrestricted flow. HPS aluminum V-band flanges are made of 6061 aluminum and utilize an NBR O-ring to create an air-tight seal for positive pressure applications. This product is ideal for intercooler piping systems as well as intake systems.

Product Specifications:

• Material: Steel/Aluminum
• Color: Polished
• Pipe Diameter: 2.5 IN
• Flange Included: Yes
• Finish: Satin
• Housing Included: Yes
• Nut Type: Lock
• Universal Or Specific Fit: Universal
• Grade Type: Performance
• Clamping Type: V Band
• Quantity: 1
• Prop 65 (C R or CR): CR
• Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
• Prop 65 Yes/No: Yes
