HPS Performance MDPK-100 HPS 304 stainless steel magnetic drain plug kit w/ 5000 gauss neodymium magnets

HPS 304 stainless steel magnetic drain plug kit w/ 5000 gauss neodymium magnets

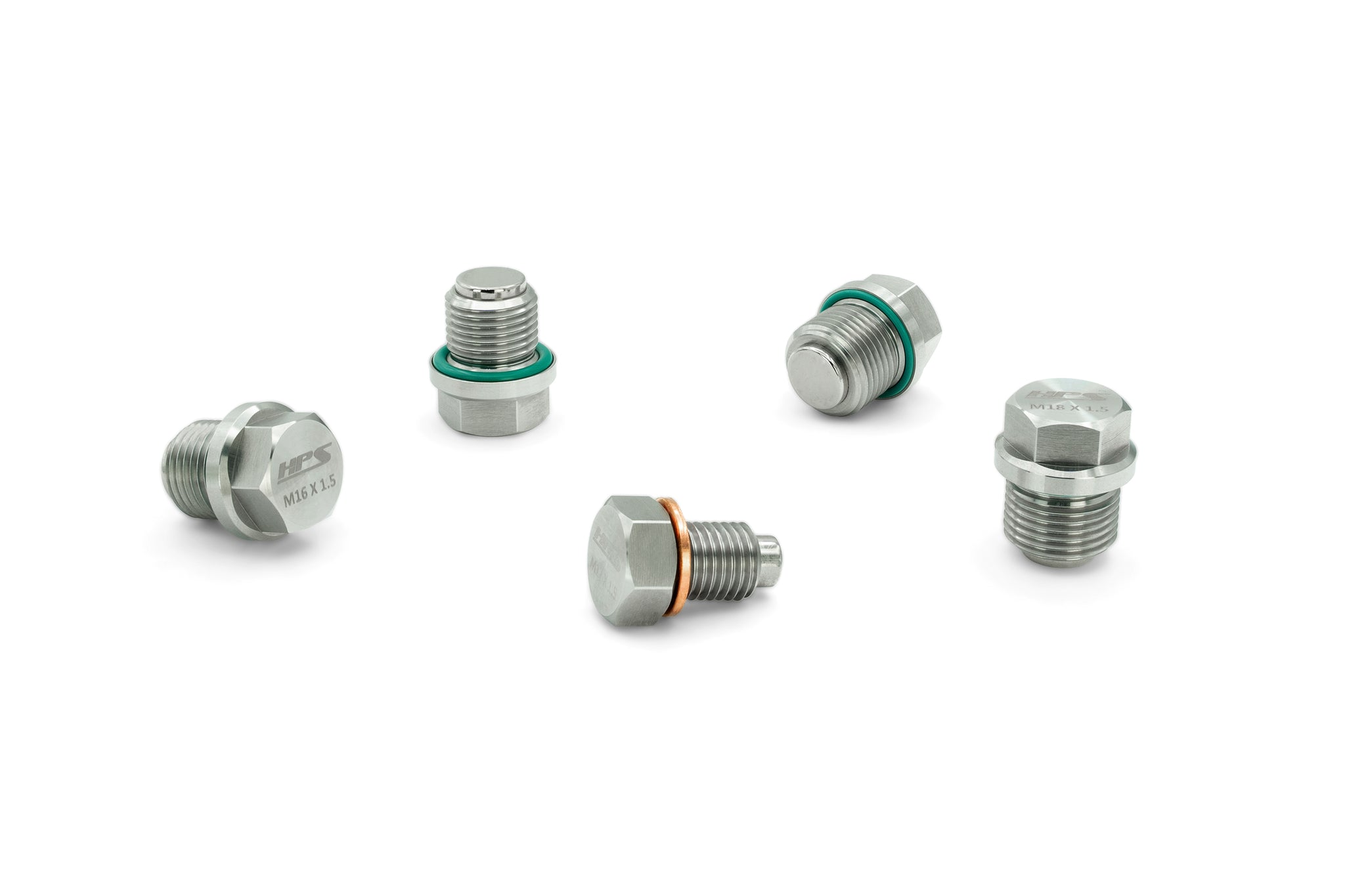

Easy-to-install magnetic drain plugs to effectively remove small metal particles from wearing away vital components. Sizes: M18x1.5 M16x1.5 M12x1.5. Number of bolts in kit: 5.

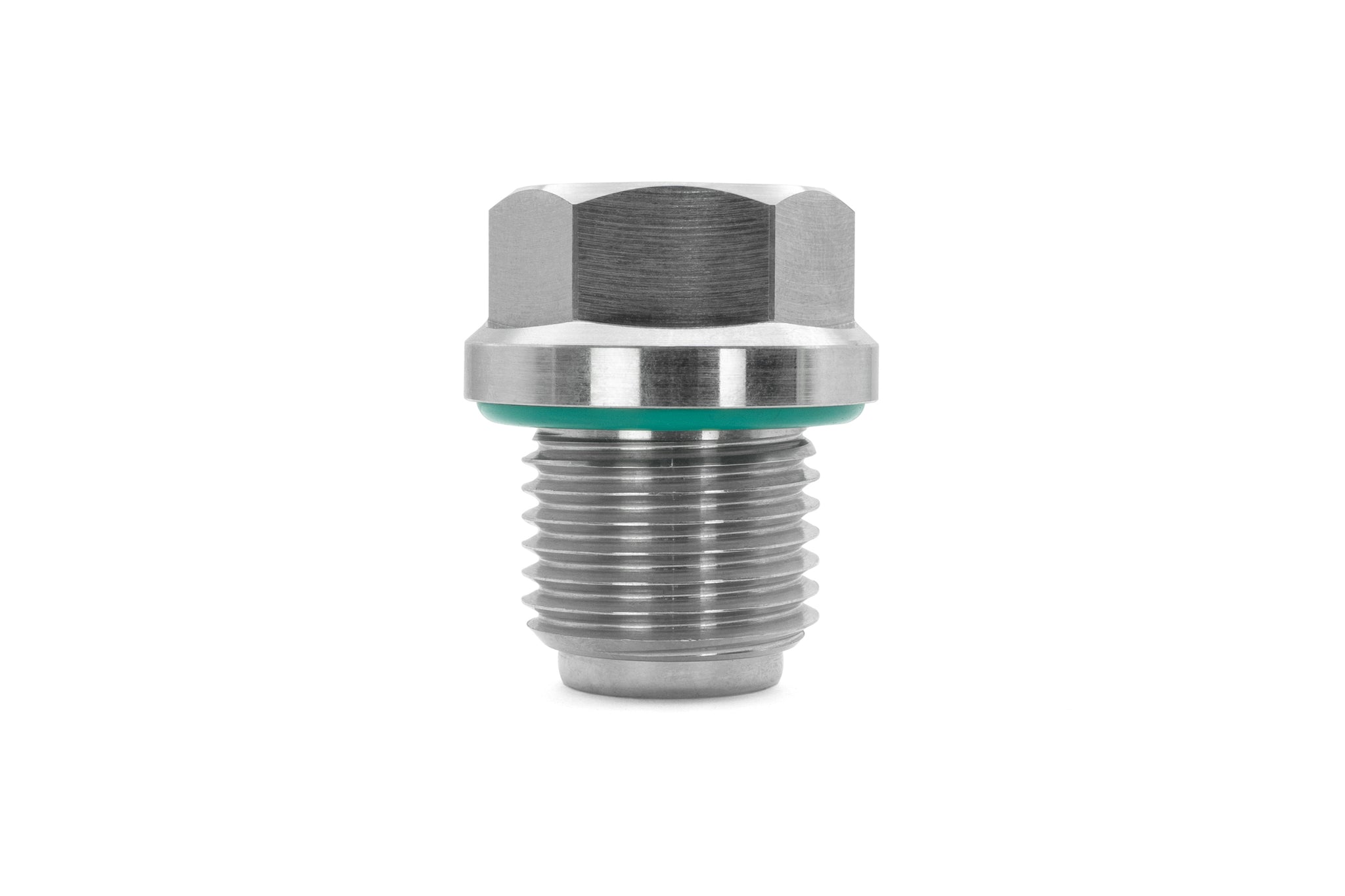

CNC machined 304 stainless steel bolts with powerful 5000 gauss neodymium rare earth magnets that pull unwanted metal debris away from the front differential rear transmission and engine oil pan.; Protect vital components from irreversible wear.; Direct replacements for the stock drain plugs that are easy to install and maintain.; Front differential and rear transmission bolts designed with Viton O-rings for superior high-temperature and corrosion resistance.; Engine oil pan bolt designed with a copper crush washer for a proper and leak-free seal.; Rear transmission M18 bolt length: 15mm thread length: 13mm thread pitch: 1.5mm.; Front differential M16 bolt length: 15mm thread length: 13mm thread pitch 1.5mm.; Engine oil pan M12 bolt length: 19mm thread length: 15mm thread pitch: 1.5mm.; Replaces OEM PN: 3234755 3234756 2203738 2203739 and 7052306.

Protect the longevity and performance of your Polaris' critical components—the differential transmission and motor—with the HPS Performance Magnetic Oil Drain Plug Kit. This essential 5-piece kit replaces the front differential's drain and fill plugs the transmission's drain and fill plugs and the motor's oil drain plug. Factory plugs are often weak and prone to stripping especially given their difficult-to-access locations making routine fluid changes a frustrating and complicated task. The HPS 304 grade stainless steel plug featuring hex head plugs are engineered to prevent stripping offering superior durability and a straightforward installation and removal process. More importantly while stock plugs are equipped with magnets their weak design cannot stand up to the damaging debris that circulate. HPS has equipped these upgraded plugs with powerful 5000 gauss neodymium magnets. These magnets attract and hold the metallic contaminants and wear debris that naturally accumulate preventing them from entering sensitive bearings and seals. By keeping the circulating fluid cleaner the HPS Performance Magnetic Oil Drain Plug Kit significantly enhances bearing life minimizes premature wear and ensures your side-by-side runs stronger for longer. Rear transmission M18 bolt length: 15mm thread length: 13mm thread pitch: 1.5mm. Front differential M16 bolt length: 15mm thread length: 13mm thread pitch 1.5mm. Engine oil pan M12 bolt length: 19mm thread length: 15mm thread pitch: 1.5mm.

Product Specifications:

• Material: Stainless Steel
• Length: 15 MM
• Color: Polished
• Magnetic: Yes
• Grade Type: Standard Replacement
• Gasket Or Seal Included: Yes
• Special Tool Required: No
• Gasket Type: O-Ring
• Head Drive Type: Hex
• Prop 65 (C R or CR): CR
• Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
• Prop 65 Yes/No: Yes
• Thread Length: 13 13 15 MM
• Thread Size: M18 x 1.50 M16x1.50 M12x1.50
• Length: 19 MM
• Gasket Type: Gasket
