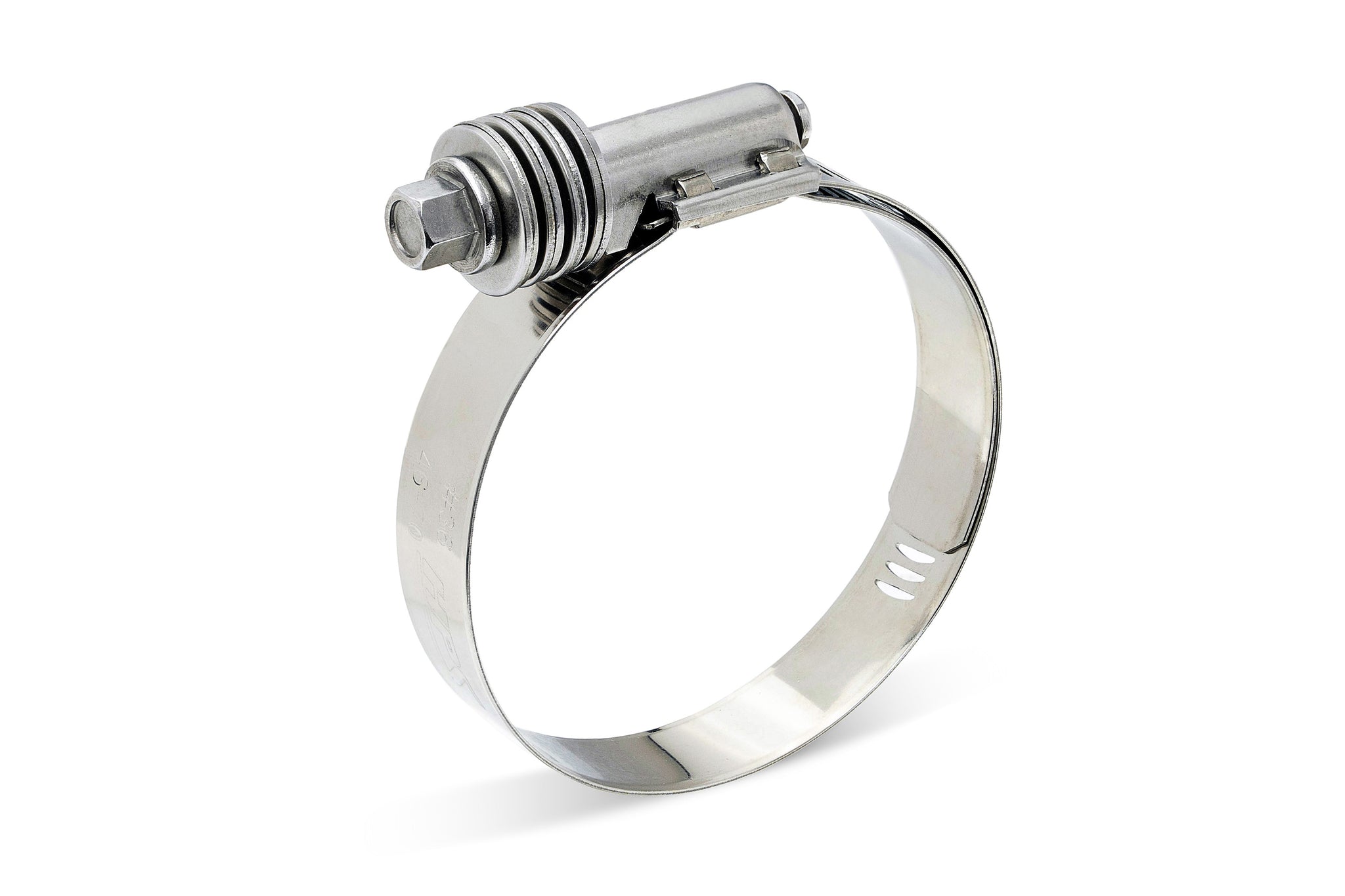

HPS Performance CTF-112

Stainless Steel Constant Tension Clamp Size #10 9/16" Band 9/16" - 1-1/16"

Evenly distributes clamping force ensures a reliable seal. Features a spring-loaded mechanism that automatically adjusts tension to offset expansion and contraction caused by temperature variations or pressure fluctuations.

The spring-loaded mechanism automatically adjusts tension to compensate for expansion and contraction caused by temperature variations or pressure fluctuations.; Maintains consistent and evenly distributed clamping force minimizing the risk of leaks and ensuring a reliable seal.; Constant tension hose clamps are suitable for various hose sizes and types including rubber silicone and thermoplastic hoses making them versatile for a wide range of applications.; Band is constructed from 304 stainless steel to withstand the rigors of continuous use providing long-lasting performance and reliability.; Rolled edges and smooth one piece liner prevents damage to soft hoses.

HPS Constant Tension Clamps are designed to accommodate fluctuations in temperature and pressure. These clamps feature a series of Belleville spring washers that automatically adjusts the clamping force to maintain a consistent tension on the hose preventing leaks slippage and damage over time. With the band made from 304 stainless steel and the springs and screw made from 410 stainless steel these hose clamps are resistant to corrosion and can withstand harsh environmental conditions. They are widely used in automotive industrial and plumbing applications where reliable hose connections are essential.

HPS Constant Tension Clamp

Size #10

9/16" Band

Product Specifications:

• Material: Stainless Steel
• Adjustment Type: Screw
• Maximum Diameter: 27 MM
• Minimum Diameter: 14 MM
• Reusable: Yes
• Color: Polished
• Band Width: 14.2 MM
• Finish: Plain
• Type: Worm Gear
• Grade Type: Performance
• Housing Material: Stainless Steel
• Minimum Clamping Length: 24 MM
• Recommended Torque: 33 PPI
• Screw Type: Worm Gear
• Prop 65 (C R or CR): CR
• Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
• Prop 65 Yes/No: Yes
• Quantity: 1
• Universal Or Specific Fit: Universal
