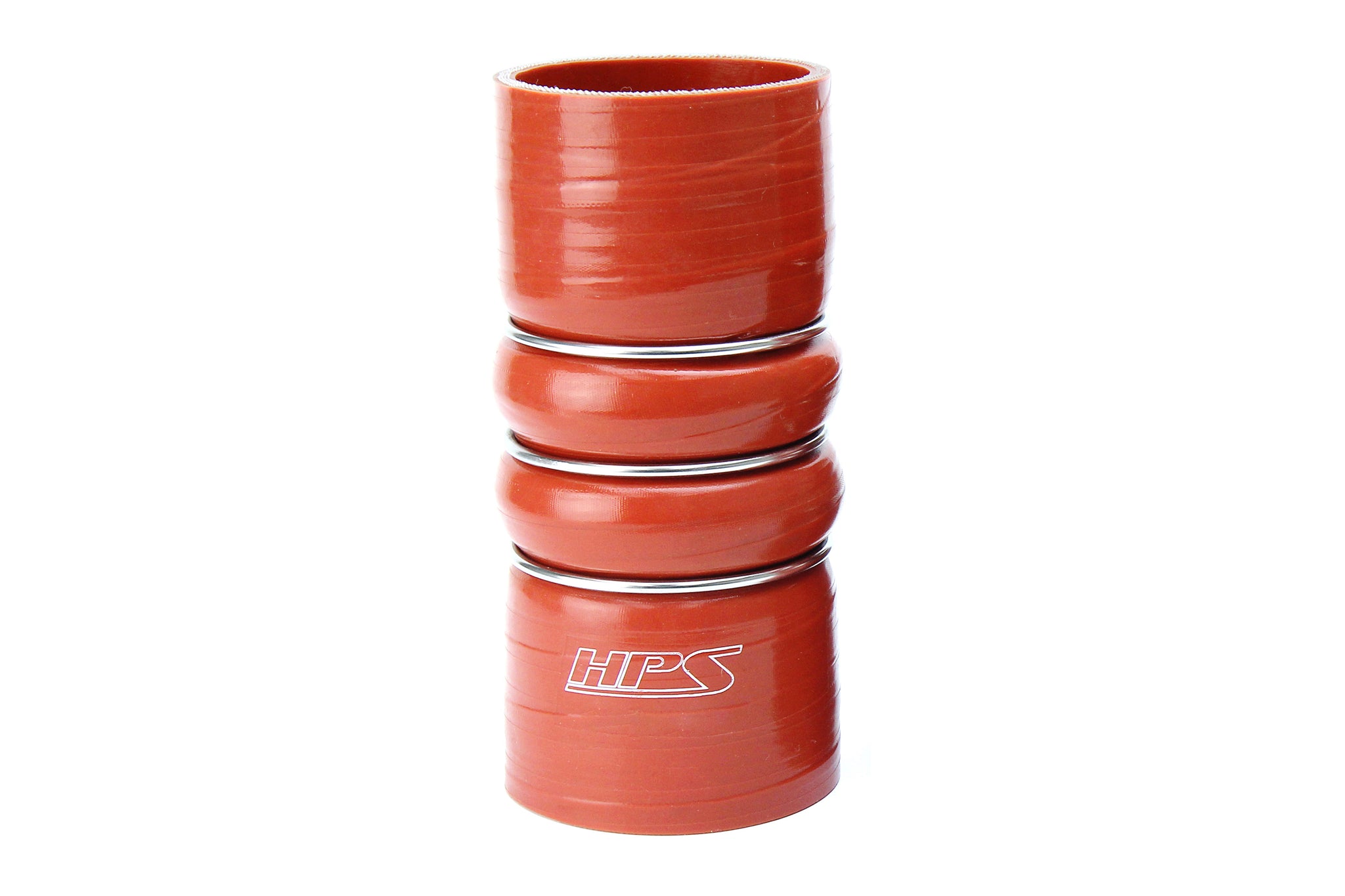

HPS Performance CAC-500-L10-HOT

Silicone CAC Hump Hose HOT High Temp 8-ply Aramid Reinforced 5" ID 10" Long

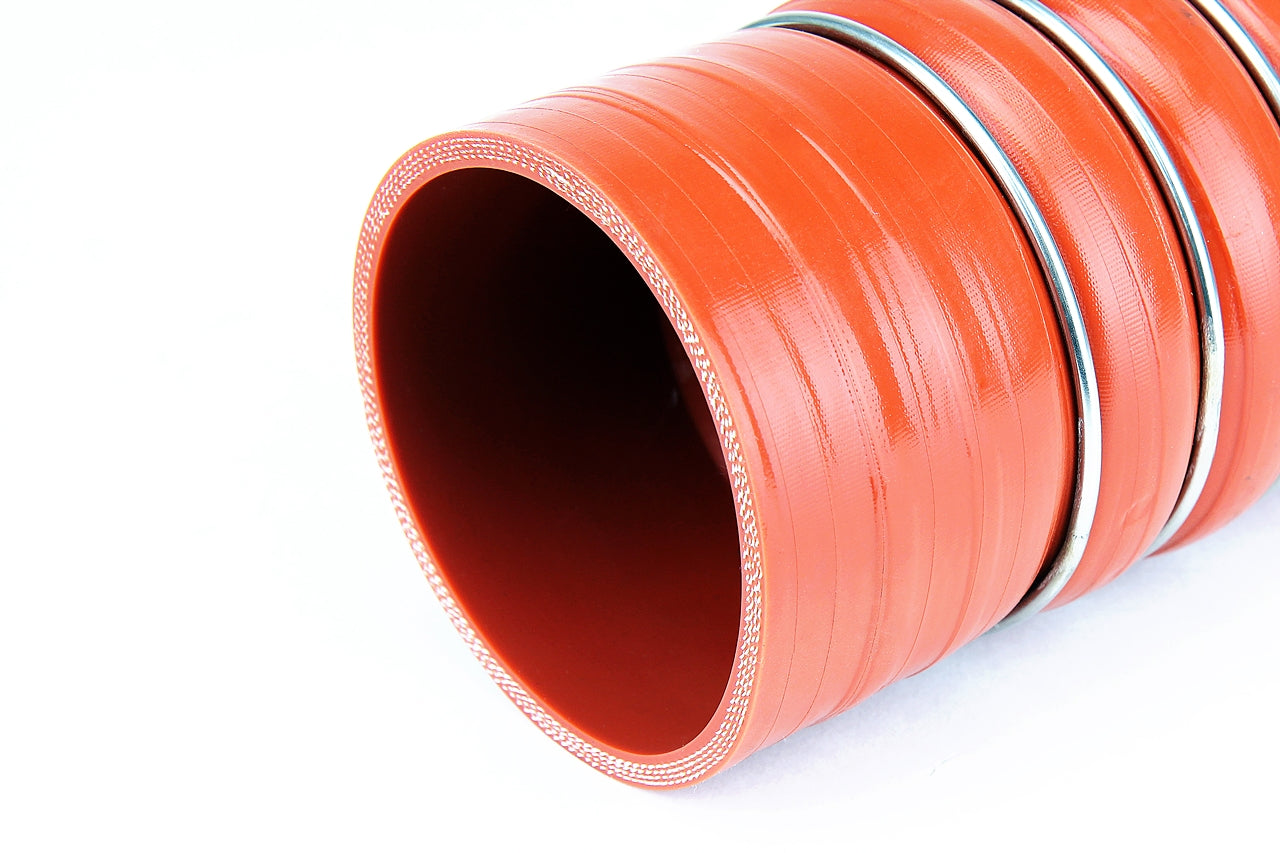

HPS Performance 4-ply ultra high temp. and high pressure resistant aramid reinforced silicone coupler. Stainless steel rings provide extra reinforcement at the center of the bellow.

Ideal for ultra high temperature applications. Max. temperature rating: 500F (177C).; 4-ply aramid reinforced silicone design to ensure long lasting quality and durability over rubber hoses.; Suited for marine industrial and custom fabrication applications.; Features 3 stainless steel rings to reinforce center of coupler under extreme high pressure conditions.; Inside Diameter: 5". Length: 10".

This HPS Performance 4-ply aramid reinforced silicone coupler is designed to meet and exceed SAEJ20 industry standards. It is ideal for ultra high temperature and heavy duty pressure connections. Unlike traditional rubber couplers that are sold in auto parts stores these are engineered with 3 stainless steel rings at the middle of the hose to provide additional reinforcement under extreme high pressure conditions. This product meets a wide range of high-performance requirements and is designed for use in marine industrial and custom turbo or intercooler piping fabrication applications. Temperature range: -65 degrees to +500 degrees Fahrenheit (260C). This hot side bellow is ideal for handling slight misalignments and isolating vibration between hose ends. REMARK: Not compatible with fuel or oil.

HPS Hot Side Charge Air Cooler Hose 5" ID

Product Specifications:

• Material: Silicone
• Coolant Compatible: No
• Maximum Temperature Rating: 500 FA
• Length: 10 IN
• Color: Orange
• End 1 Gender: Female
• End 2 Gender: Female
• End 1 Inside Diameter: 5 IN
• End 2 Inside Diameter: 5 IN
• Shape: Straight Tube
• Grade Type: Performance
• Hose Clamps Included: No
• Angle: 0 DD
• Oil Resistant: No
• Prop 65 (C R or CR): CR
• Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
• Prop 65 Yes/No: Yes
• Universal Or Specific Fit: Universal
• Wall Thickness: 5 MM
