HPS Performance 57-1864-BLK 4-ply reinforced silicone loop to bypass cabin heater

4-ply reinforced silicone loop to bypass cabin heater

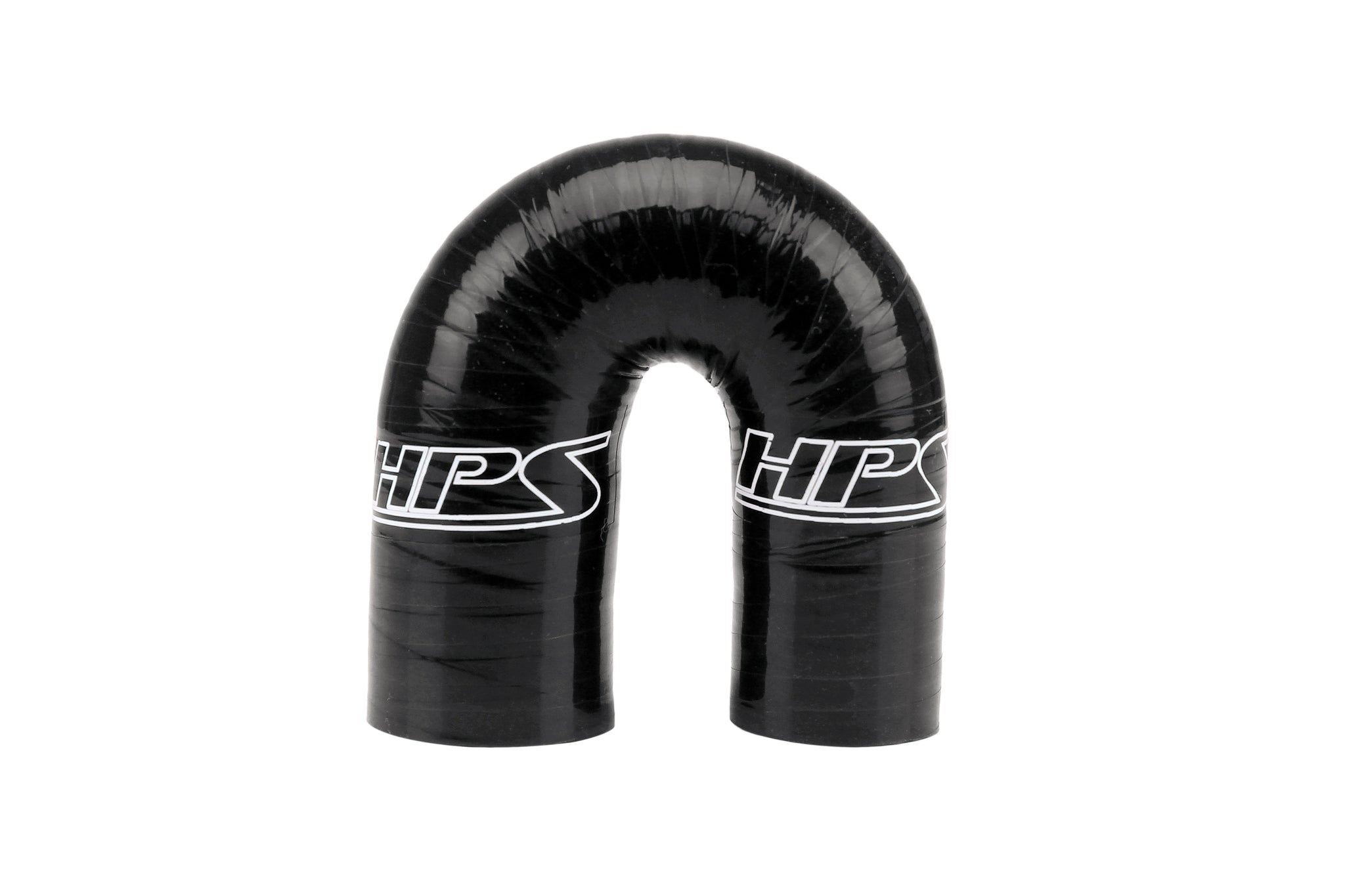

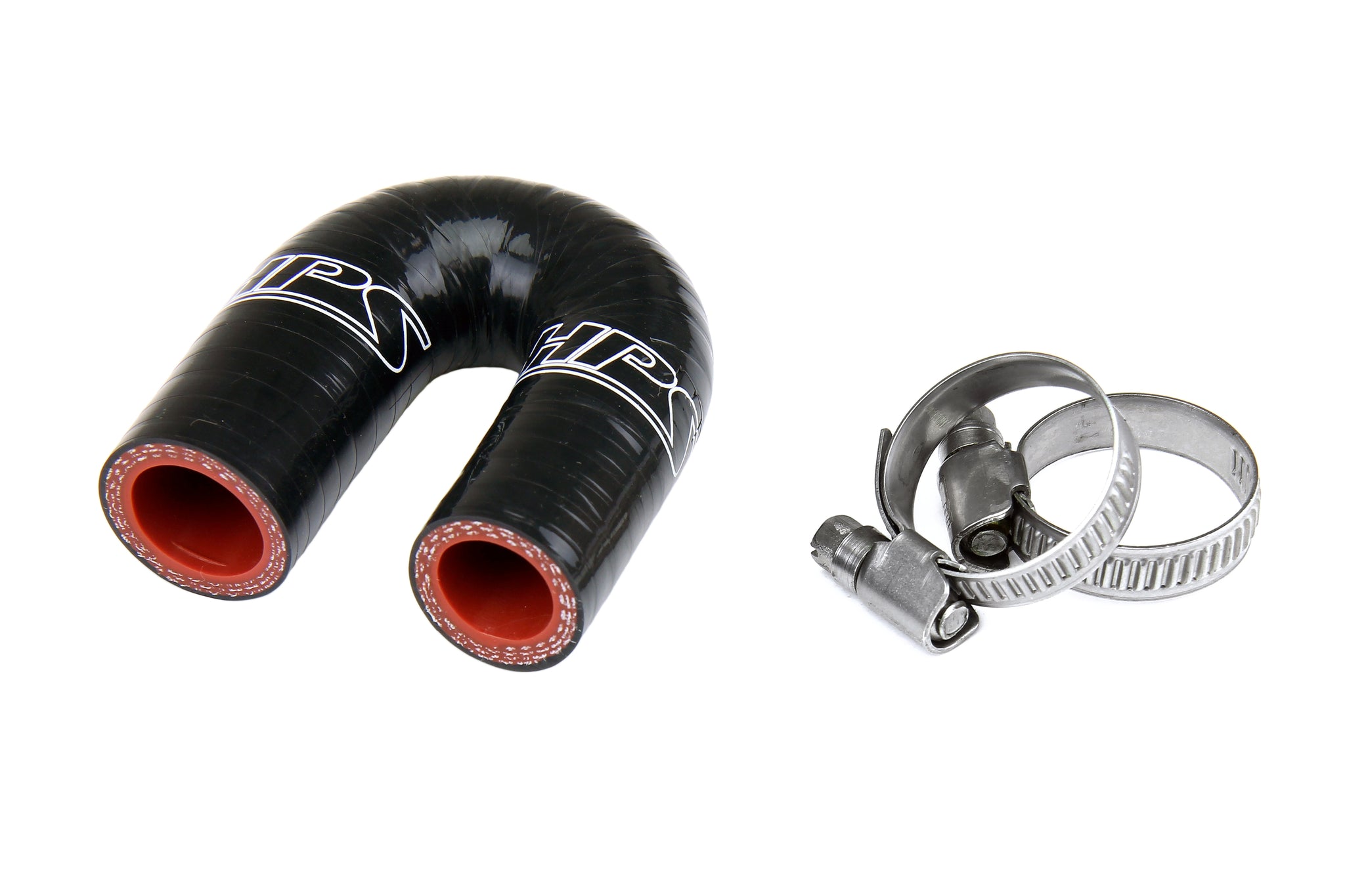

HPS Performance high temperature 4-ply reinforced silicone heater core bypass loop hose kit. High temp. and high pressure resistant. 100% stainless steel embossed hose clamps included. No cutting or trimming required.

Ideal kit to bypass the cabin heater on any LS family engine (LS1 LT1 LQ9 etc.) with 5/8" and 3/4" heater supply and return ports.; Low profile heater loop measuring 3 inches tall.; Eliminates concerns about air pockets that can develop when capping off heater lines.; Withstands harsh high temperature and high pressure operating conditions. Max. temperature rating: 350F (177C).; Includes HPS 100% stainless steel industrial grade embossed hose clamps which will not cut through silicone hose.

The HPS High Temp 4-ply Reinforced Silicone Bypass Loop Kit is designed to bypass the cabin heater on any LS family engine (LS1 LT1 LQ9 etc.) with 5/8" and 3/4" heater supply and return ports. This easy to install loop eliminates concerns about air pockets that can develop when capping off your heater lines. This product features a low profile design measuring in at only 3 inches tall. Engineered for extremely high temperature service and prolonged exposure to under hood heat this race proven design can withstand the harshest operating conditions. 100% stainless steel embossed hose clamps are included for easy installation. Maximum temperature rating: 350 degrees Fahrenheit.

Product Specifications:

• Material: Silicone
• Color: Black
• Clamps Included: Yes
• Contains Spring: No
• Maximum Working Pressure: 100 PS
• Hose Shape: Molded Assembly
• Protective Sleeve Attached: No
• Hose Quantity: 1
• Grade Type: OEM Performance
• Burst Pressure: 298 PS
• Branch Quantity: 0
• Maximum Temperature Rating: 350 FA
• Prop 65 (C R or CR): CR
• Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
• Prop 65 Yes/No: Yes
• Universal Or Specific Fit: Specific
