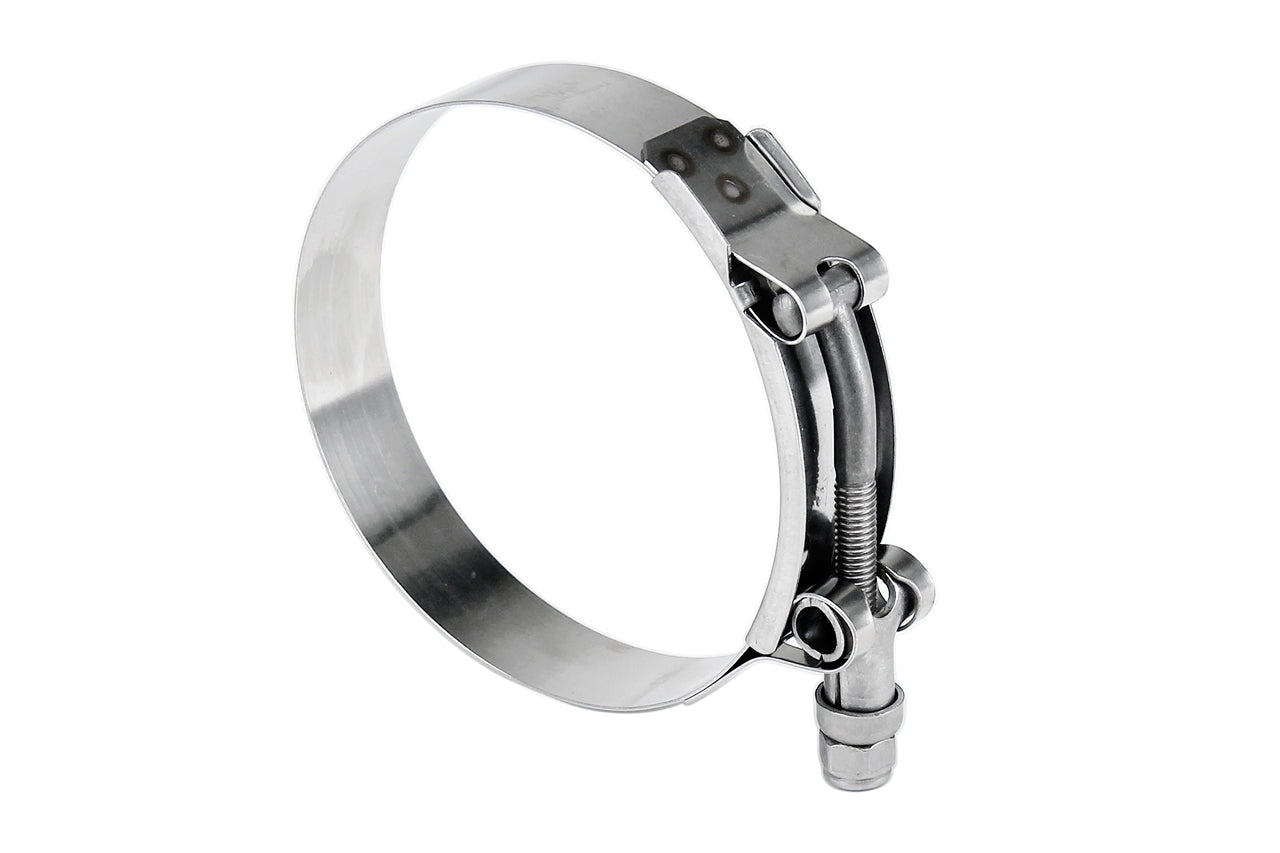

HPS 316 Stainless Steel T-Bolt Hose Clamp Size #204 7-1/4" - 7-9/16" 316-SSTC-184-192

100% Marine Grade Stainless Steel T-Bolt Hose Clamp Size #204 Range:7.25"- 7.56"

Size # 204. Effective range: 7.25" - 7.56" (184mm-192mm). Performs well in saltwater applications and offer better corrosion resistance than 304 T-bolt clamp. Provides leak-proof connections on marine engine and exhaust systems.

100% marine grade 316 stainless steel band bolt and nut. High strength superior welded construction.; Perform well in saltwater applications and offer better corrosion resistance than 304 T-bolt band clamp. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps.; Effective range: 7.25" - 7.56" (184mm-192mm). SAE # 204.; Floating bridge and rolled edges to protect soft hoses. 3/4 inch (19mm) band width.; Maximum Torque Spec 75 in. lbs. Recommed to use two clamps for wet exhaust application.

HPS 100% marine grade 316 stainless steel T Bolt hose clamps with effective range 7.25" - 7.56" (184mm-192mm) perform well in saltwater applications and offer better corrosion resistance than the standard 304 T-bolt band clamp; therefore 316 tbolt clamps are commonly used to provide leak-proof connections on marine engine and exhaust systems. Fits HPS silicone hose with 7" (178mm) inside diameter. It is recommended that two clamps be used on each end of a wet exhaust installation. Professionals also utilize the high strength 316 T Bolt clamps in applications such as water treatment and sewage systems military filter bags telecommunication devices sanitary systems food and pharmaceutical processing equipment. Technical Specification: Effective size range: 7.25" - 7.56" (184mm-192mm). SAE # 204. 100% marine grade 316 Stainless Steel Band Bolt and Nut. High strength with superior welded construction. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps. 3/4" Band Width. Max. Torque Spec 75 in. lbs.

Product Specifications:

• Material: Stainless Steel
• Adjustment Type: Nut
• Maximum Diameter: 192 MM
• Minimum Diameter: 184 MM
• Reusable: Yes
• Color: Polished
• Band Width: 19 MM
• Finish: Plain
• Type: T-Bolt
• Grade Type: Performance
• Housing Material: Stainless Steel
• Minimum Clamping Length: 29 MM
• Recommended Torque: 33 PPI
• Screw Type: T-Bolt
• Prop 65 (C R or CR): CR
• Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
• Prop 65 Yes/No: Yes
• Quantity: 1
• Universal Or Specific Fit: Universal
