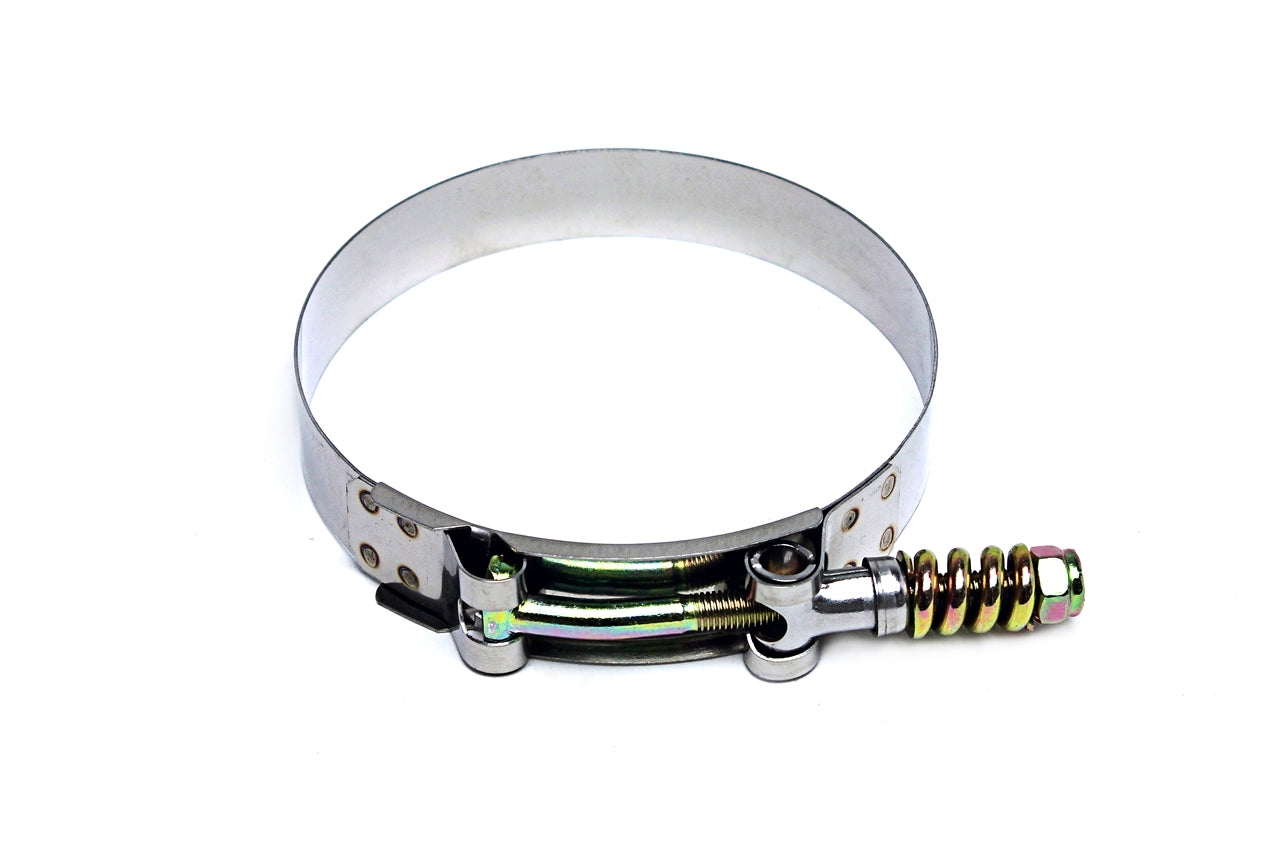

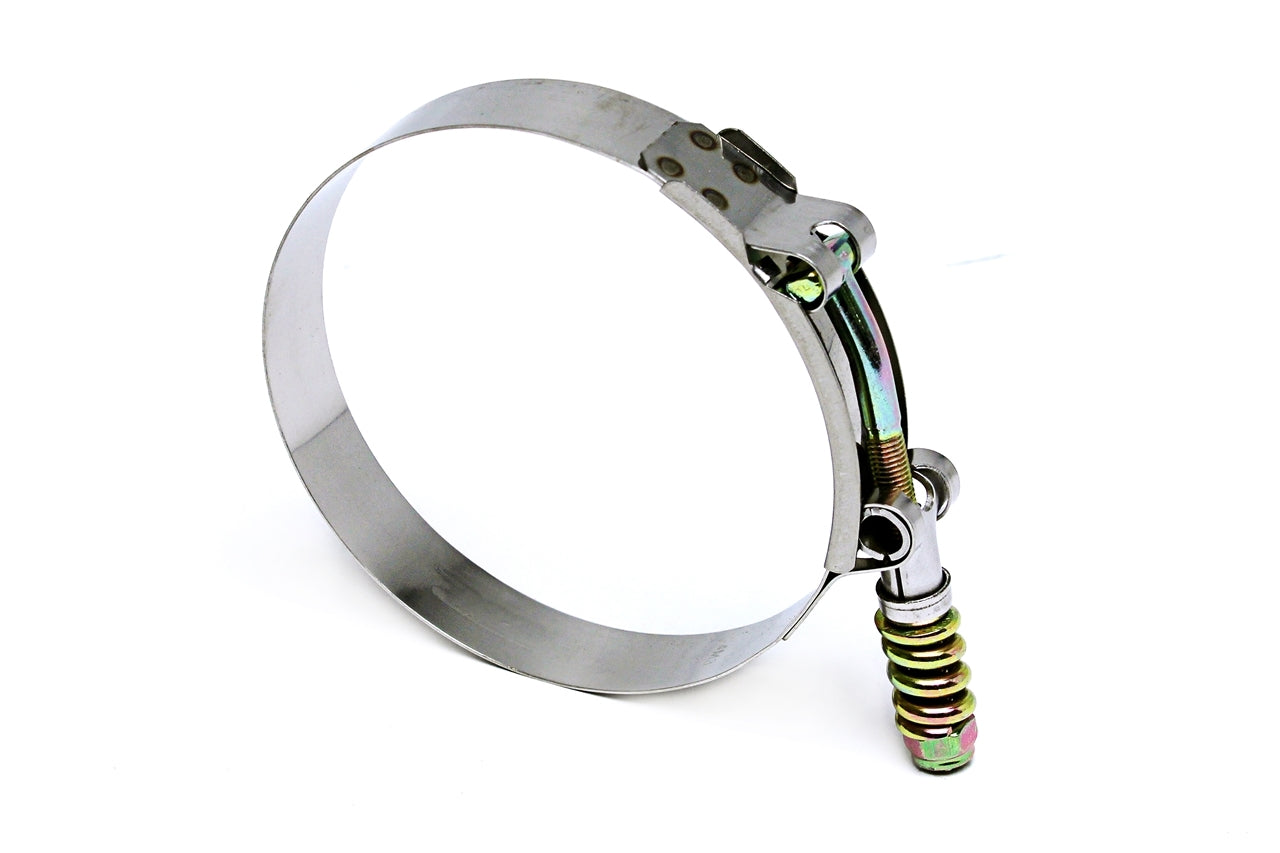

HPS 304 Stainless Steel Spring Loaded T-Bolt Hose Clamp Size #108 4-1/4" - 4-9/16" SLTC-425

Stainless Steel Spring Loaded T-Bolt Hose Clamp Size #108 Range:4.25"-4.57"

Fits 4" ID HPS silicone hose. Provides high strength and a 360 degree seal. The added spring automatically adjusts the clamp diameter to compensate for the expansion and contraction of hose when temperatures or the pressure fluctuate.

SAE #108. Effective Diameter Range: 4.26"-4.57" (108mm-116mm). Fits 4" ID HPS silicone hose; 3/4" wide 300 Series Stainless Steel Band and Trunnion; Zinc Plated T-bolt Nut and Springs; Nominal Diameter: 4-1/2". Max. Torque Spec: 75 in. lbs.; Meets or exceeds SAE Standard ideal for charge air cooler system (cac) aircraft automotive truck and heavy-duty vehicle industrial hardware/plumbing and marine industries.

HPS Stainless Steel Spring Loaded T-Bolt Clamp 4.25"-4.57" (108mm-116mm) for 4" inch ID hose provides high strength and a 360 degree seal. The added spring is there to automatically adjusts the clamp diameter to compensate for the expansion and contraction of hose when temperatures or the pressure fluctuate. HPS spring loaded clamps are reusable. Design to meet or exceeds SAE Spec. J1508 for T-bolt clamps. The clamps has a floating bridge and rolled edges to protect soft hose. The lock nut has a nylon insert to prevent it from backing out. Tighten with a 7/16 inch socket wrench. The HPS constant tension t bolt clamps are widely used in the charge air cooler system (cac) aircraft automotive truck and heavy-duty vehicle industrial hardware/plumbing and marine industries. Technical Specification: SAE #108. Effective Size Range: 4.25"-4.57" (108mm-116mm). Superior welded construction. Floating bridge and rolled edges to protect soft hoses. 3/4 inch wide 300 Series Stainless Steel Band and Trunnion. Zinc Plated T-bolt Nut and Springs. 7/16 inch head Nylon Nut. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps. Max. Torque Spec: 75 in. lbs.. Quantity: 1

Product Specifications:

• Material: Stainless Steel
• Adjustment Type: Nut
• Maximum Diameter: 116 MM
• Minimum Diameter: 108 MM
• Reusable: Yes
• Color: Polished
• Band Width: 19 MM
• Finish: Plain
• Type: T-Bolt
• Grade Type: Standard Replacement
• Housing Material: Steel
• Minimum Clamping Length: 29 MM
• Recommended Torque: 33 PPI
• Screw Type: T-Bolt
• Prop 65 (C R or CR): CR
• Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
• Prop 65 Yes/No: Yes
• Quantity: 1
• Universal Or Specific Fit: Universal
• Material: Steel
• Grade Type: Performance
