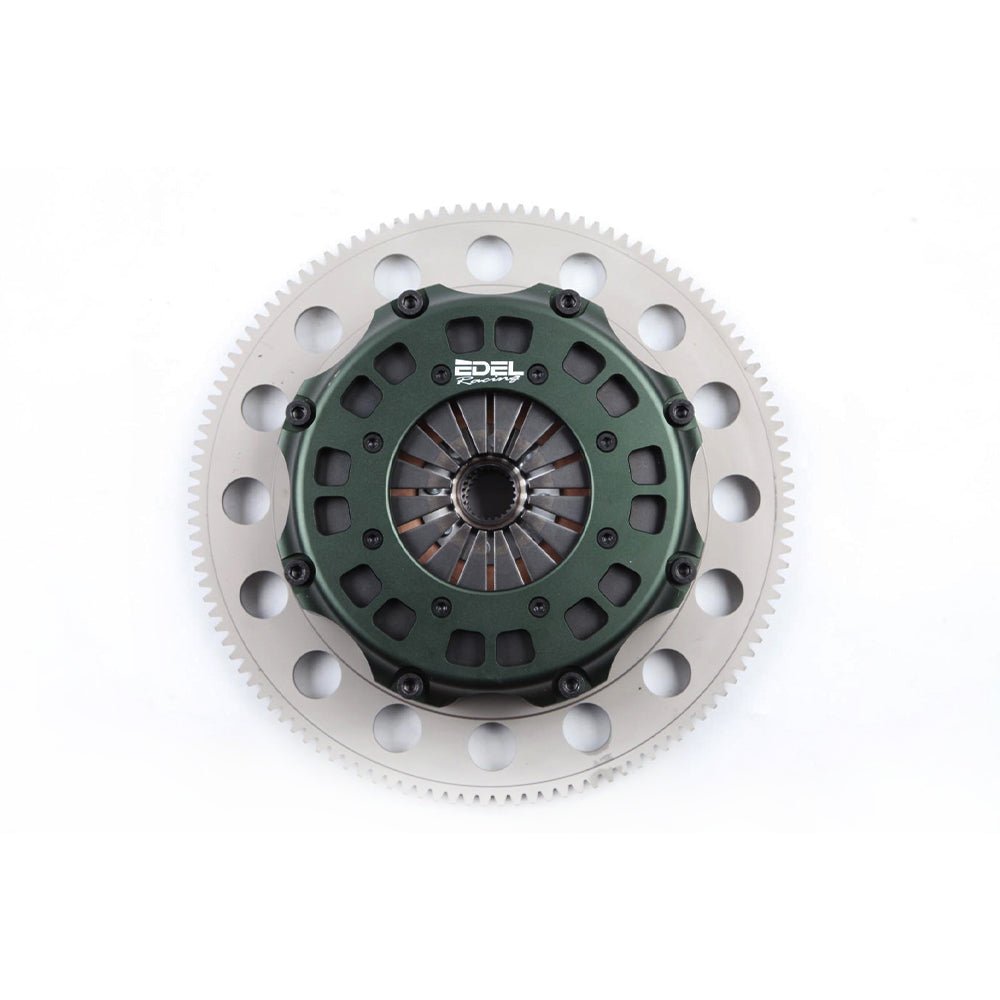

BLOX Racing B-Series Twin Disc Race 7.25" Clutch by Edel for BLOX Racing

Our B-Series Twin Disc Race 7.25" clutch and lightweight flywheel by EDEL for BLOX Racing have been extensively tested and are proven winning products.  Our Twin Disc system is an upgraded clutch kit for those who want a performance clutch for their road or track day car.

The kit is designed for Turbo or All Motor that have a large increase in power and torque. Our kit includes only the highest grade components and is designed to replace factory OEM parts - no modification is required. Utilizing premium organic friction material for high heat tolerance, quick recovery, and long life.

Crafted from aircraft quality aluminum, our vented pressure plate provides a smooth and precise feel with easy modulation and designed to increase clamp load. All pressure plates are load tested for quality assurance.

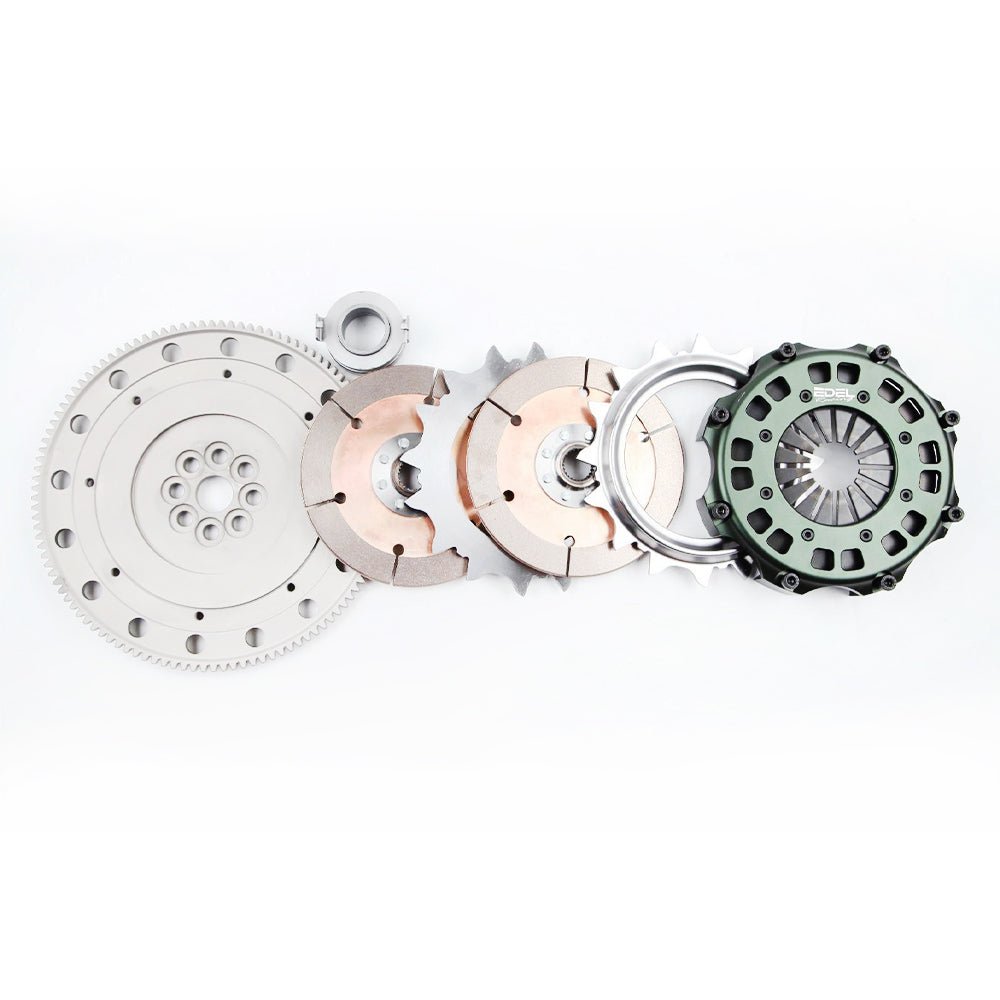

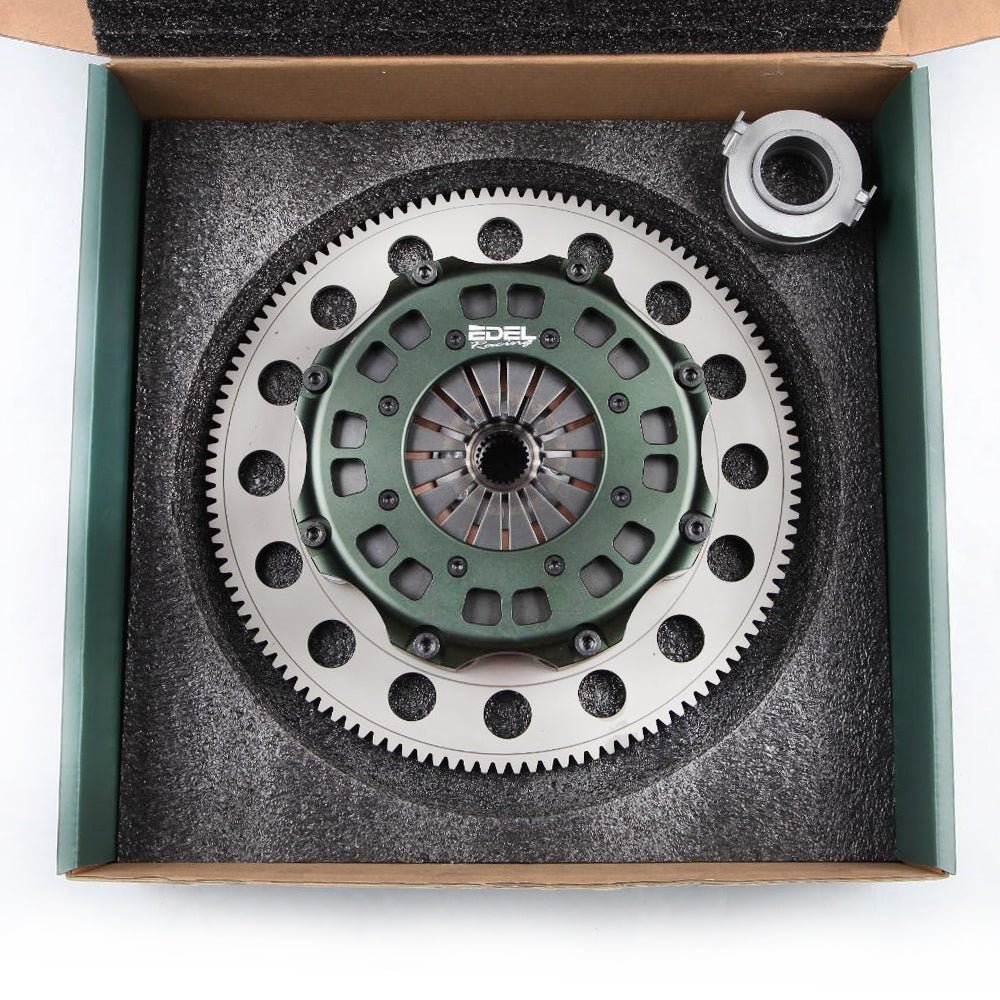

Kit comes complete with a lightweight billet flywheel, throw-out bearing, alignment tool, and utilizes solid center hub discs and a special design with low moment of inertia for superior drag, track, road, and circuit driving.

FEATURES:

• Clutch Type: Push Style Release Mechanism
• Pressure Plate Cover: Aircraft Quality Aluminum Alloy
• Flywheel Design: One-Piece Billet Chromoly
• Bearing Contact Diameter: 44-52mm
• Bearing Load @38mm: 210kg
• Release Travel Required: 5mm
• Clutch Disc Diameter: 7.25" (185mm)
• Clutch Disc Thickness: .250" (6.35mm)
• Clutch Disc Quantity: Twin
• Clutch Disc Type: Solid
• Clutch Disc Material: Cerametallic
• Torque Capacity: up to 850ft/lb
• Horsepower: up to 1200hp

APPLICATIONS:

• Acura/Honda B-Series
