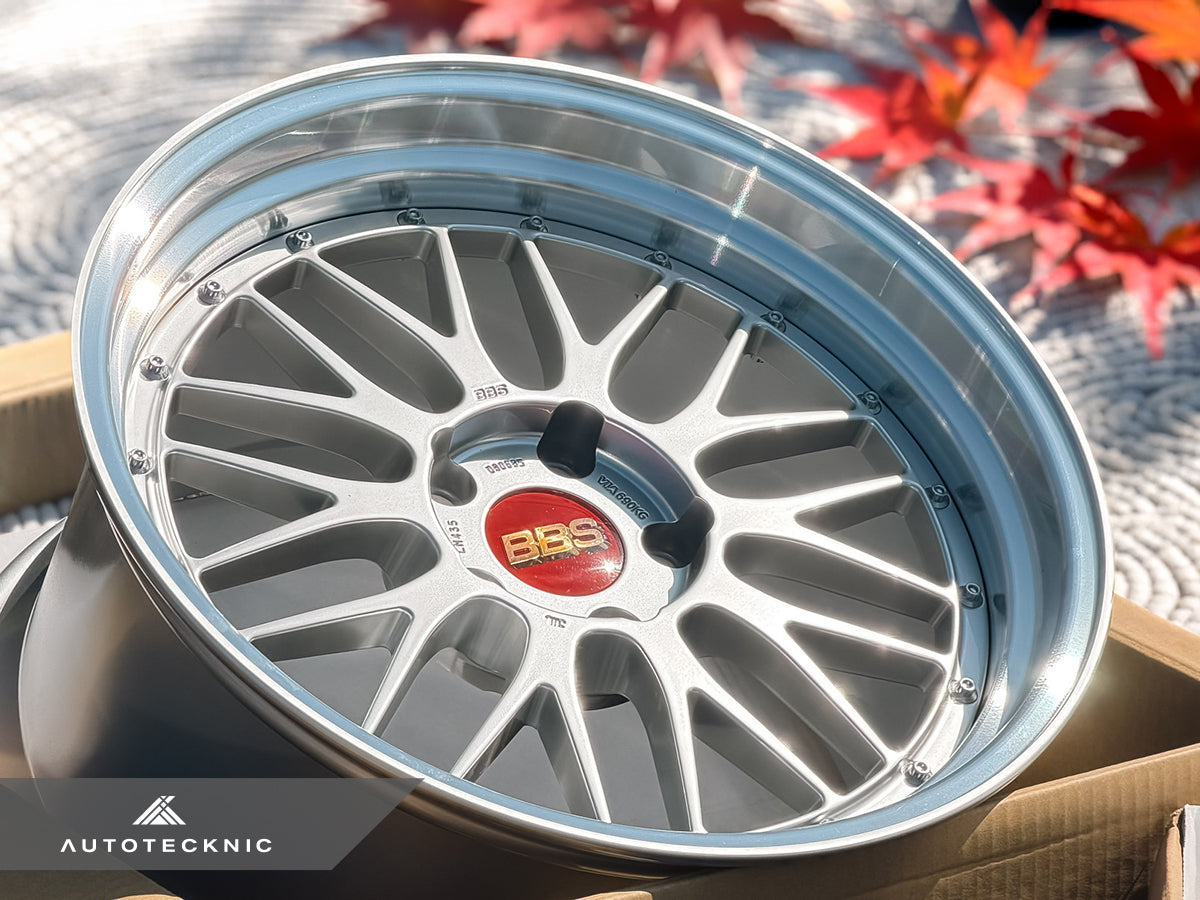

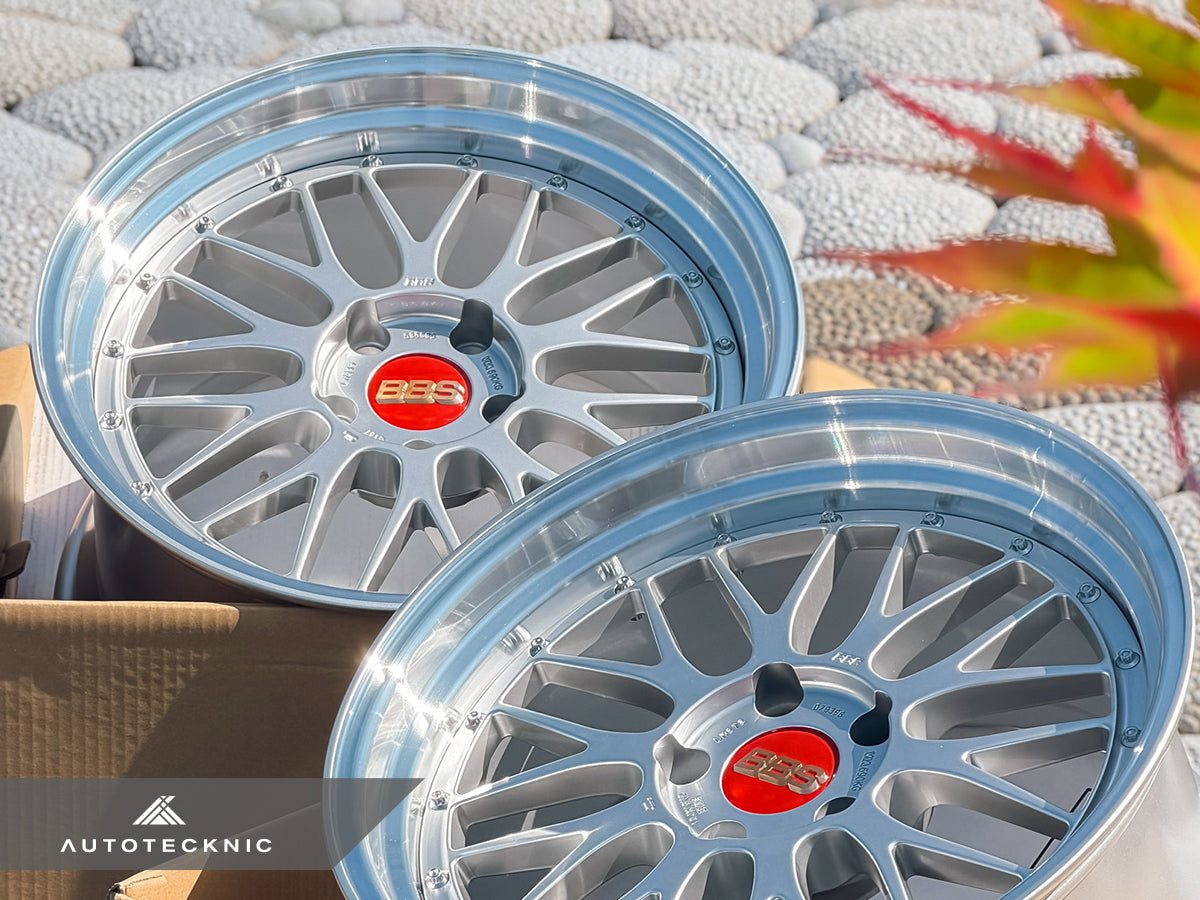

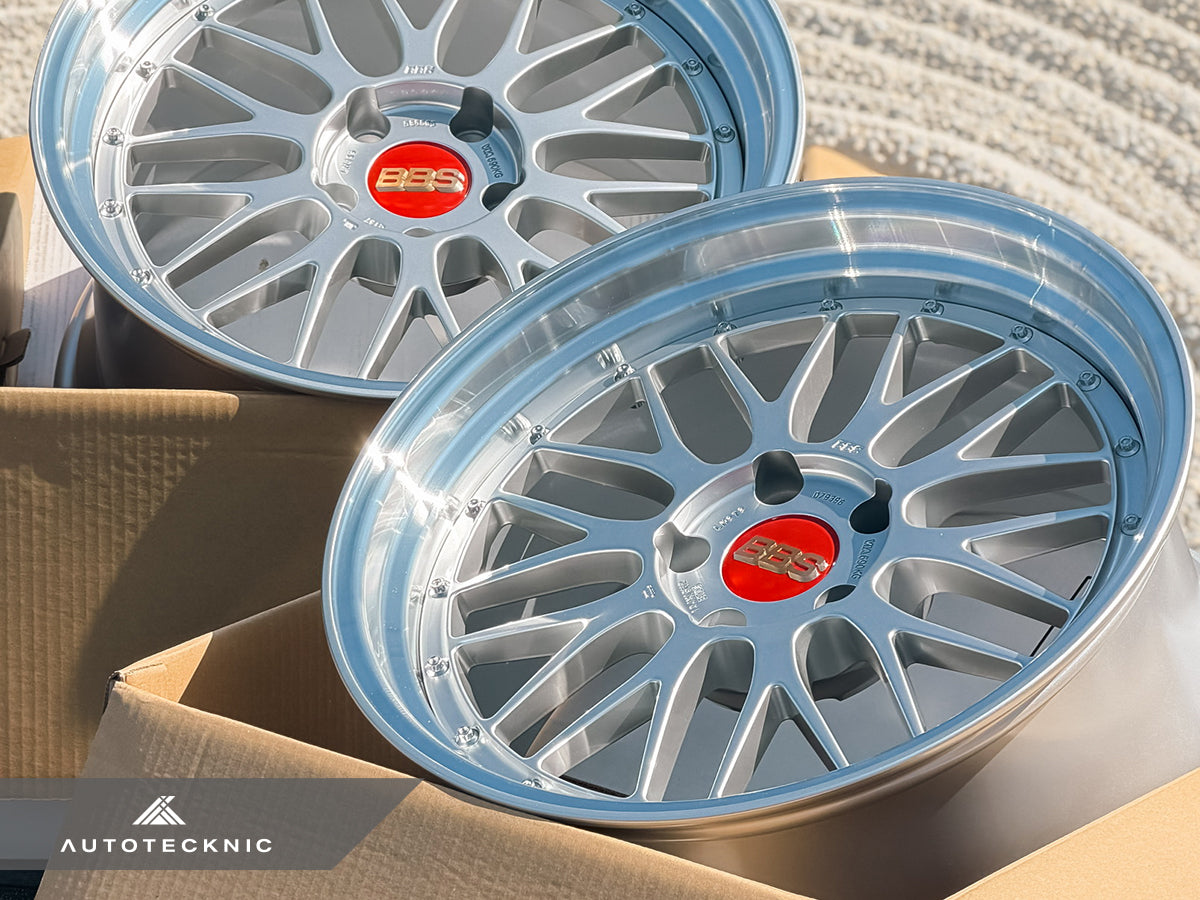

The BBS LM is the wheel that defined the modern multi-piece forged look, and decades on it remains the benchmark. This is a forged two-piece design pairing a die-forged center with a spun aluminum lip, finished in the iconic Diamond Silver center against a polished diamond-cut lip. It is the finish most associated with the LM, and on an aggressive staggered setup it is about as timeless as wheels get.
BBS builds the LM center from 6000-series aluminum using a multi-stage die-forging process that aligns the grain structure for maximum strength at minimum weight. The result is a wheel light enough for serious use and strong enough to back it, wrapped in a cross-spoke design that has been copied endlessly and equaled rarely. Each wheel carries the polished stainless lip bolts and red/gold BBS center cap that mark the genuine article.
This is an aggressive staggered set: 19x10 +25 up front and 19x11 +37 in the rear, both in 5x120. Each wheel includes the BBS PFS kit (82mm OD / 72.5mm ID hub ring, 82mm clip, and lug bolts) for a proper hub-centric fit. Load rated to 690kg per wheel, 82mm center bore.
Specifications
- Model: BBS LM (Forged Two-Piece)

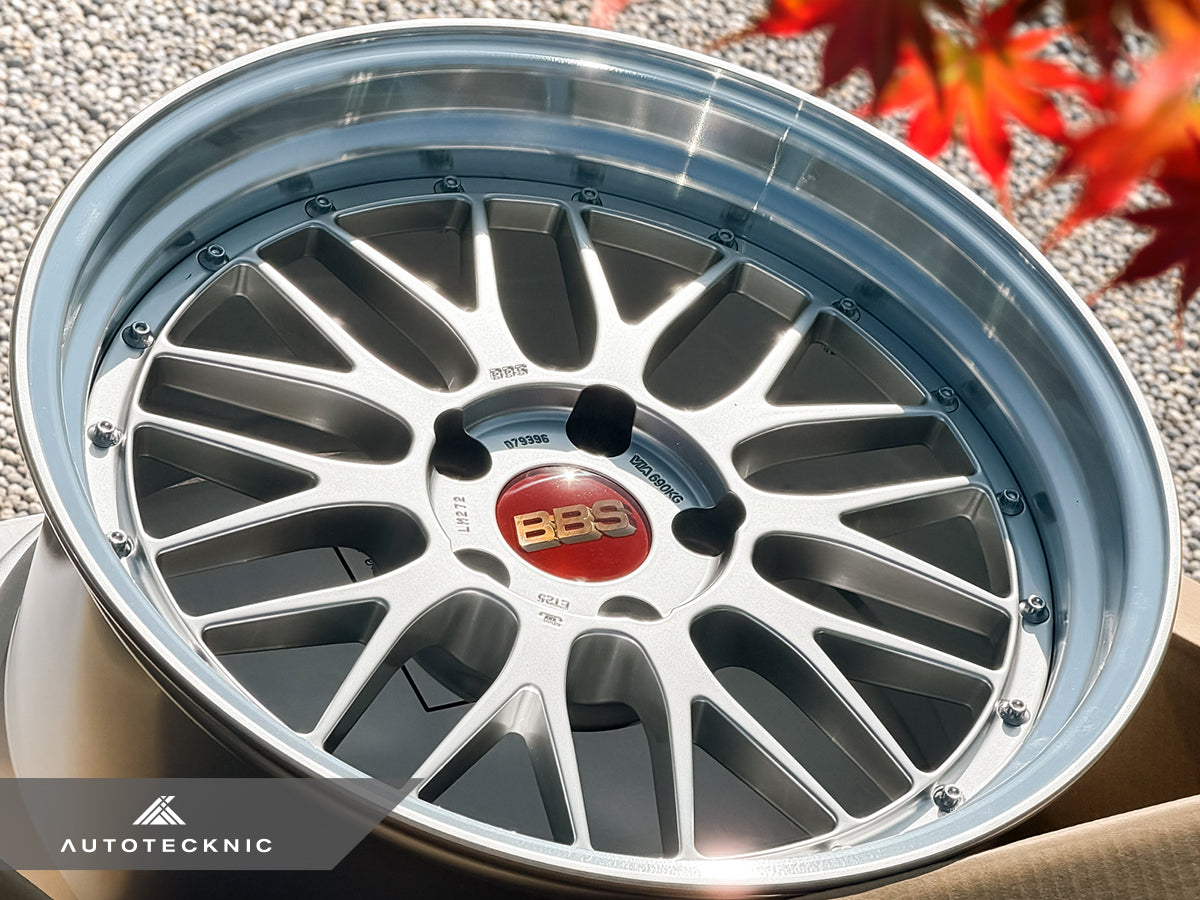

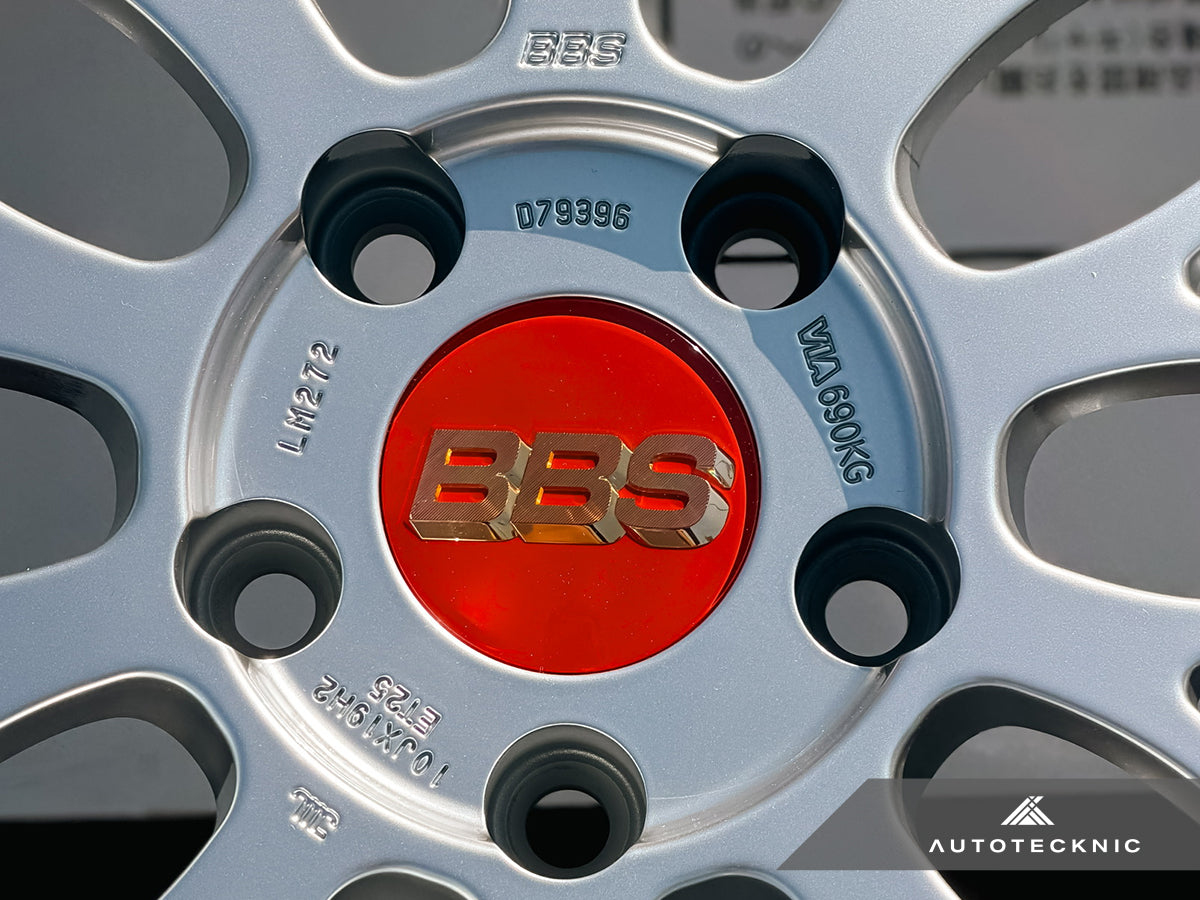

- Front: 19x10 ET25 (BBS part D79396 / LM272)

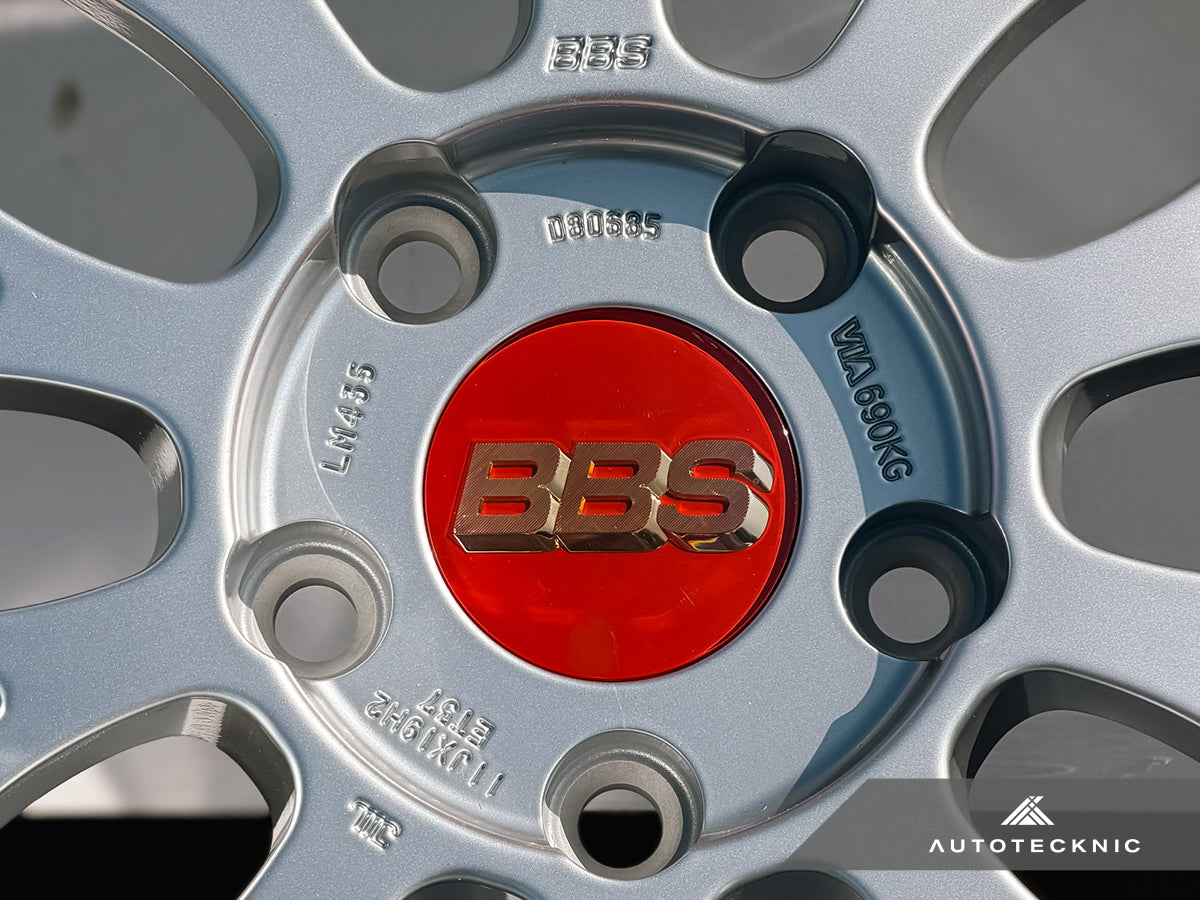

- Rear: 19x11 ET37 (BBS part D80585 / LM435)
- Bolt Pattern: 5x120
- Center Bore: 82mm (PFS hub ring included)
- Finish: Diamond Silver center / Diamond Cut polished lip
- Load Rating: 690kg per wheel
- Construction: Forged Two-Piece
- Manufacturer: BBS, Made in Japan
- Includes: BBS PFS kit (hub ring, clip, lug bolts), red/gold center caps
- Sold as: Staggered Set of 4
Fitment - Aggressive Staggered (F8X-Intended)
This is an aggressive staggered set intended for the BMW F80 M3 / F82 M4 platform. Read carefully before ordering:
- The rear (19x11 +37) matches the standard F8X M3/M4 rear specification.
- The front (19x10 +25) is wider and more aggressive than the standard F8X front (which is 19x9.5 +22). This front carries BBS part LM272, a specification BBS catalogs for other 5x120 chassis. On an F80/F82 it will sit wider and more poked up front, and front fender rolling/pulling, modified or coilover suspension, specific tire sizing, and added camber are expected to achieve clearance.
- This is NOT a bolt-on OEM-replacement fitment. It is a custom aggressive setup for builders who want a wide front stance and are prepared to do clearance work.
- Will NOT clear carbon ceramic brakes (CCB) or 2NH brake packages.
It is the buyer's responsibility to confirm front and rear clearance for their specific build (ride height, suspension, brake package, tire size, and alignment) before purchasing. If you want a bolt-on F8X fitment without front clearance work, contact us about the standard 19x9.5 +22 front spec instead.
Fitment Disclaimer
Fitment listings are a general guide. Wheel fitment depends on your vehicle's year, trim, suspension, brake setup, and tire choice. It is the buyer's responsibility to confirm correct fitment before purchase. AutoTecknic is not responsible for incorrectly ordered specifications. This is a custom aggressive staggered set and is sold as such.
Returns
Mounted wheels cannot be returned. Wheels that have had tires mounted, been installed, or show any signs of use are non-returnable. Inspect your wheels thoroughly before mounting.
