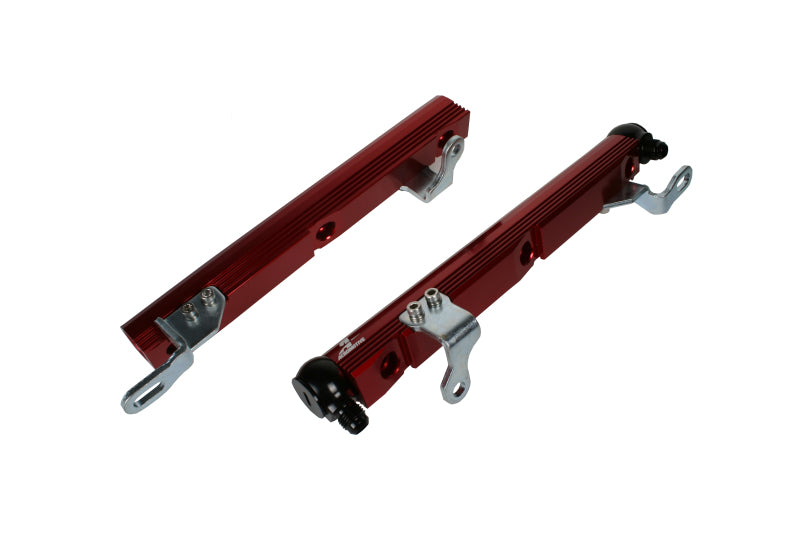

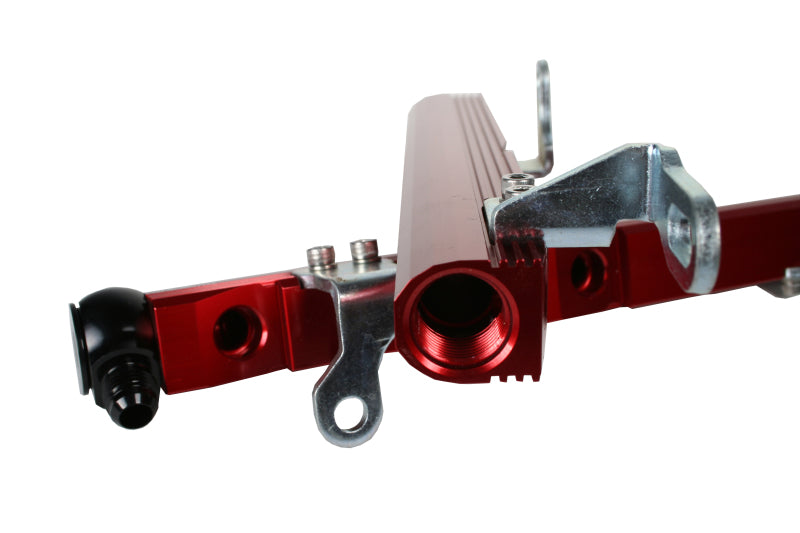

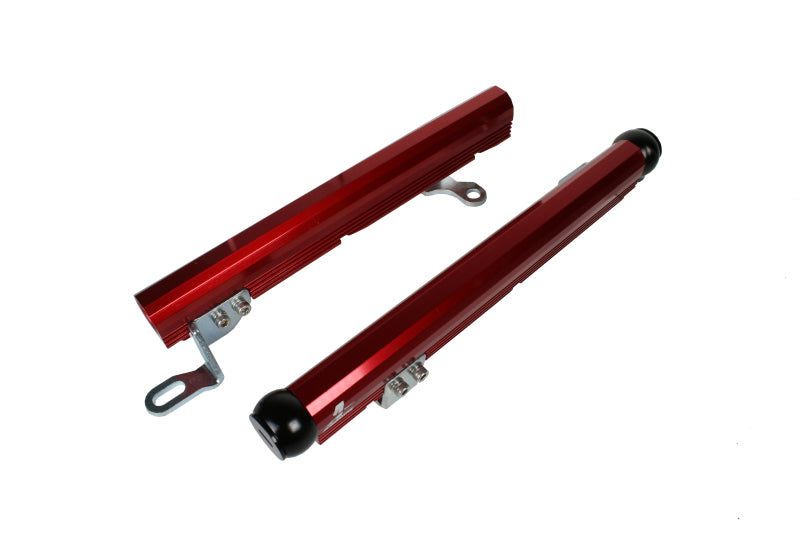

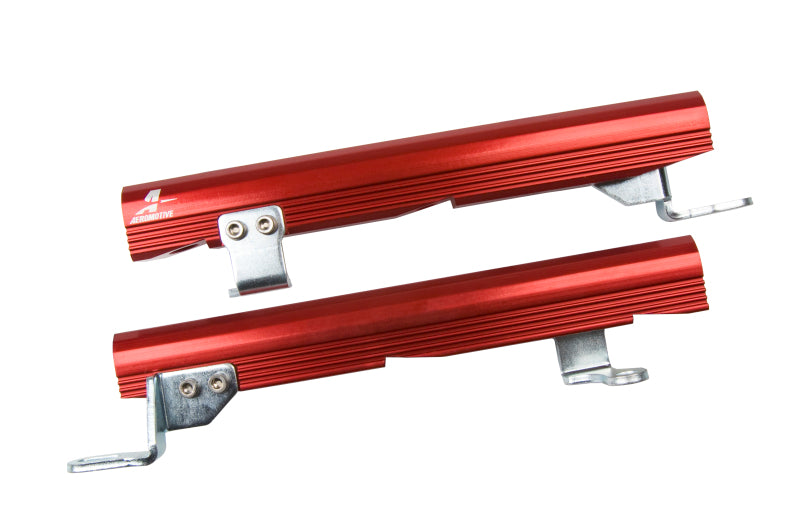

Aeromotive High Flow, Billet Fuel Rails combine 3,000 HP flow capabilities with ?bolt-on? ease of installation. Fits 1996-2007 GM Supercharged 3.8L?? Rails Only. ORB-08 Ports with compact connections and positive, leak-free sealing. Full 5/8' ID through bore, capable of supporting up to 3,000 HP. Fully compatible with -10 AN line if combined with custom ORB-08/AN-10 adapter P/N 15641. Full size ports at each end for optimal injector supply and minimal hydraulic fluctuation. Additional inlet/outlet ports are provided where required for plumbing convenience. CNC-machined, billet aluminum construction for unequaled fit and finish. Steel mounting brackets, custom engineered for each application, combining a solid, durable mounting platform with correct fit and ?bolt-on? ease of installation. Red, Type II bright dip anodized finish that looks great and protects against corrosion.
Installation InstructionsThis Part Fits:
| Year |
Make |
Model |
Submodel |
| 1998 |
Buick |
Regal |
25th Anniversary Edition |
| 1997-1999 |
Buick |
Regal |
GS |
| 1997-1999 |
Buick |
Regal |
LS |
| 1996-1999 |
Buick |
Riviera |
Base |
| 2004-2005 |
Chevrolet |
Impala |
Base |
| 2004-2005 |
Chevrolet |
Impala |
LS |
| 2004-2005 |
Chevrolet |
Impala |
Police |
| 2004-2005 |
Chevrolet |
Impala |
SS |
| 2004-2005 |
Chevrolet |
Monte Carlo |
LS |
| 2005 |
Chevrolet |
Monte Carlo |
LT |
| 2004-2005 |
Chevrolet |
Monte Carlo |
SS |
| 1996,2005-2006 |
Pontiac |
Grand Prix |
Base |
| 1996-2003,2005-2006 |
Pontiac |
Grand Prix |
GT |
| 2004 |
Pontiac |
Grand Prix |
GT1 |
| 2004 |
Pontiac |
Grand Prix |
GT2 |
| 1996-2005 |
Pontiac |
Grand Prix |
GTP |
| 2005-2006 |
Pontiac |
Grand Prix |
GXP |
| 1996-2003 |
Pontiac |
Grand Prix |
SE |
